Can You Cure Powder Coat In A Home Oven? The Complete DIY Guide
Have you ever wondered if you can achieve that durable, factory-like finish on your metal projects using just a powder coat in oven setup in your own garage? The allure of a flawless, chip-resistant coating is strong for DIY enthusiasts, welders, and custom fabricators. But the question isn't just can you—it's should you, and more importantly, how can you do it safely and effectively? The short answer is yes, it's technically possible, but it comes with a critical set of safety protocols, equipment requirements, and technical nuances that separate a successful project from a dangerous failure or a ruined oven. This guide will walk you through every essential detail, from the non-negotiable safety rules to the precise curing cycle, ensuring you understand the full scope of curing powder coat in an oven.
The Critical Reality Check: Safety First and Foremost
Before we dive into the "how-to," we must confront the most important aspect of this process: safety. Using a standard kitchen or even a workshop oven for powder coating is inherently risky and is strongly discouraged by powder coating manufacturers and safety organizations. The primary danger lies in the off-gassing that occurs during the curing process.
Understanding the Toxic Fumes
When thermoset powder coating cures, it releases volatile organic compounds (VOCs) and other hazardous gases. These fumes are not just unpleasant; they are toxic. The most significant concern is the release of isocyanates and other curing agents. Inhalation of these fumes can cause severe respiratory distress, sensitization (where even tiny future exposures trigger violent allergic reactions), and long-term health issues. This is not a "vent the kitchen window" situation. These fumes can permeate the oven's insulation, contaminating it permanently and posing a risk every time the oven is used for food afterward. The risk of contaminating your home's air and surfaces is extremely high.
The Fire and Explosion Hazard
Powder coating is, as the name suggests, a fine powder. When suspended in air inside an enclosed space like an oven, it creates a potentially explosive atmosphere. A single spark from a heating element, a static discharge from the part being loaded, or even a hot spot can ignite the powder cloud. While modern ovens have safety features, they are not designed to manage this specific hazard. Furthermore, if the oven temperature overshoots the powder's curing range (typically 350°F - 400°F / 177°C - 204°C), the powder can char, smoke, or even ignite, creating a fire inside the oven.
The unequivocal safety rule is this: You must use an oven dedicated solely and permanently to powder coating. This means a powder coat oven that is either a purpose-built unit or a repurposed, decommissioned kitchen oven that will never, under any circumstances, be used for food again. This oven should be located in a well-ventilated area, ideally a separate room or building with an exhaust fan vented directly outside, and all users must wear appropriate respirators rated for organic vapors and particulates (e.g., NIOSH-approved N100 or P100 filters, or better). Personal protective equipment (PPE) is non-negotiable.
Choosing the Right Oven: From Dedicated Units to Repurposed Appliances
If you've accepted the safety mandate for a dedicated oven, your next step is selecting the right one. The market offers several paths, each with its own trade-offs in cost, size, and performance.

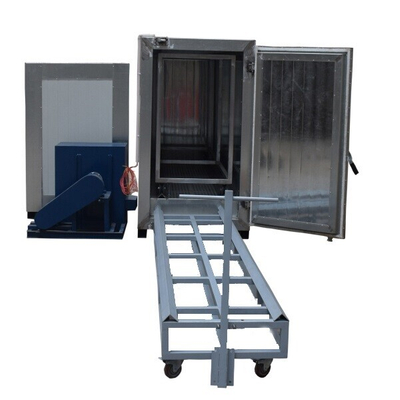

Dedicated Powder Coating Ovens
These are the gold standard. They range from small, benchtop "toaster oven" sized units for small parts to large walk-in ovens for automotive frames. Key features include:
- Even Heat Distribution: They use convection fans to circulate hot air, eliminating hot spots that cause uneven curing.
- Precise Temperature Control: Digital controllers maintain the exact temperature required by your specific powder's technical data sheet.
- Safe Construction: Often built with easier-to-clean interiors and designed with powder coating hazards in mind.
- Integrated Exhaust Options: Many can be fitted with external ventilation systems.
While a significant upfront investment (from a few hundred to several thousand dollars), a dedicated oven is the only responsible choice for regular or commercial use.
Repurposing a Used Kitchen Oven
This is the most common DIY approach but carries the highest risk if not done meticulously. If you choose this route:
- Source Responsibly: Find a used electric oven from a reputable seller. Never use a gas oven. The open flame is an instant ignition source for powder fumes.
- Decommission Thoroughly: The oven must be physically and permanently altered to prevent any future food use. Remove all racks, heating elements, and interior panels. Sandblast or grind down the interior to bare metal to remove any old food residue and grease, which can smoke and burn during the first few powder curing cycles. Clearly label the oven with "POWDER COATING ONLY - NOT FOR FOOD" in multiple places.
- Upgrade for Safety & Performance: Install a temperature controller (like an Inkbird or similar) to override the oven's often-inaccurate thermostat. Add a small convection fan inside the oven cavity to improve heat circulation. Most importantly, set up a robust ventilation system—a powerful inline exhaust fan ducted directly outside, placed to draw fumes from the oven's door seal area.
- Accept the Limitations: Even with modifications, a repurposed oven will have less precise temperature control and poorer insulation than a dedicated unit, leading to longer cure times and higher energy costs. The risk of residual contamination, despite cleaning, remains.
The Science of the Cure: Temperature, Time, and Powder Chemistry
Understanding why the oven cure is so specific is key to avoiding ruined parts. Powder coating is a thermoset material. This means the powder particles melt, flow out, and then undergo an irreversible chemical cross-linking reaction (curing) to form a hard, infusible plastic film.
Reading the Technical Data Sheet (TDS)
Every manufacturer provides a Technical Data Sheet (TDS) for each powder product. This is your bible. It will specify:
- Cure Schedule: Typically listed as "350°F for 10 minutes" or "200°C for 10 minutes." This is the metal temperature (the part's temperature), not the oven air temperature.
- Film Thickness: The recommended dry film thickness (DFT) for optimal cure. Applying too thick a layer can trap solvents and prevent full cure.
- Substrate: Which metals it's designed for (steel, aluminum, etc.).
The Oven-to-Part Temperature Lag
This is the most common point of failure for beginners. The oven air temperature must be set higher than the target metal temperature to account for heat absorption. A part pulled from a 350°F oven will be significantly cooler. A good rule of thumb is to set your oven 25-50°F (14-28°C) above your target metal cure temperature and use a contact thermometer or thermocouple to verify the part's actual temperature during a test run. For example, for a powder requiring a 350°F metal temp, you might set the oven to 375-400°F and monitor a test piece until it hits 350°F, then start your timer.
The Step-by-Step Powder Coating Oven Cure Process
With a safe setup and knowledge of your powder's requirements, the actual curing process follows a disciplined sequence.
1. Pre-Cure Preparation: The Foundation of Success
- Cleaning is Everything: The part must be immaculately clean and dry. Any oil, grease, fingerprints, or rust will prevent adhesion and cause failures. This typically involves a multi-step process: degreasing with a solvent or dedicated cleaner, abrasive blasting (sandblasting) to create a profile and remove mill scale, and then a final wipe with a solvent like acetone or a dedicated pre-paint cleaner. Any residue left will be baked on permanently.
- Masking: Areas that cannot be coated (threads, bearing surfaces, etc.) must be masked with high-temperature Kapton tape or powder coating-specific masking plugs and caps. Regular vinyl or paper tape will melt and burn.
- Grounding: The part must be electrically grounded to the powder gun's earth ground. A poor ground causes back-ionization (orange peel texture, poor coverage) and is a major cause of defective finishes. Use a dedicated ground clamp directly to a clean metal part of the workpiece.
2. Application: Achieving the Perfect Powder Layer
- Gun Setup: Follow the manufacturer's guidelines for your electrostatic powder gun (tribo or corona). Ensure proper voltage, current, and powder flow settings.
- Technique: Hold the gun perpendicular to the part, 8-12 inches away. Use smooth, even passes, overlapping each pass by about 50%. The goal is a uniform, dry, matte finish. The powder should not look wet or runny. Apply multiple light coats rather than one heavy one. The final dry film thickness should match the TDS recommendation (often 2-4 mils).
3. The Curing Cycle: Patience and Precision
- Preheat the Oven: Bring the oven up to your calculated oven air temperature (e.g., 375°F for a 350°F metal target). Let it stabilize for 10-15 minutes.
- Load the Part: Using heat-resistant gloves, place the coated part on a clean, powder-coated or stainless steel rack. Ensure parts are not touching each other. Close the door quickly to minimize heat loss.
- Monitor the Time: Once the oven reaches temperature, start your timer only after the part has reached its target metal temperature. For small parts, this may be 1-2 minutes after loading. For large, massive parts (like a truck bumper), it could take 10+ minutes for the core to heat up. The cure clock starts when the part's surface hits temperature, not when you put it in. Use a thermocouple probe taped to a representative spot on a test piece to be sure.
- The Cure: Allow the part to remain at temperature for the full time specified in the TDS (e.g., 10 minutes at 350°F metal temp). Do not open the door during this time.
- Cool Down: After the timer goes off, turn off the oven and let the part cool inside the closed oven. Rapid cooling (quenching) can cause thermal shock, leading to cracks or poor adhesion. Let it cool to room temperature, which may take 30-60 minutes.
4. Post-Cure Inspection
Once cool, inspect the finish under good light. A properly cured coating will be hard, smooth, glossy, and have a uniform "orange peel" texture that is fine and consistent. Perform a cross-hatch adhesion test (using a specialized tool or a sharp utility knife) if critical. A poorly cured coating will feel soft or gummy, have a powdery surface, or show poor adhesion where the tape test peels off flakes.
Troubleshooting Common Powder Coating Oven Problems
Even with careful preparation, issues can arise. Here’s how to diagnose them:
- Orange Peel (Heavy Texture): Usually caused by insufficient oven temperature (part didn't reach cure temp), too high of a gun voltage causing the powder to repel from the surface, or applying the powder too thickly. Solution: Verify part temperature with a thermometer, adjust gun settings lower, apply thinner coats.
- Poor Coverage/Thin Spots: Often a grounding issue. The powder isn't being attracted to all areas. Check your ground clamp connection. Also, ensure your gun technique has proper overlap.
- Runs or Sags: Caused by applying the powder too wet/heavy or by oven temperature being too low initially, causing the powder to flow excessively before gelling. Solution: Apply lighter coats and ensure a rapid, accurate temperature rise to the gel point.
- Blistering or Bubbles: This is almost always moisture trapped in the substrate. The metal part was not completely dry after washing or blasting. Solution: Ensure parts are baked dry (a "bake-out" at a lower temp, e.g., 250°F for 20 minutes) before powder application, or use in a very low-humidity environment.
- Chalking or Fading Quickly: Indicates incomplete cure. The cross-linking reaction was not fully completed, leaving the coating vulnerable to UV degradation. Solution: Increase cure temperature or time slightly, and always verify part temperature, not just oven setting.
Alternatives to the Home Oven: Safer, Scalable Solutions
Given the significant risks and challenges of a powder coat in oven DIY setup, what are the better alternatives?
1. Professional Powder Coating Shops
This is the safest and often most cost-effective solution for most people. For a few dozen dollars, you can drop off a prepped part and have it professionally coated in a controlled, ventilated environment with industrial-grade ovens. You get a perfect finish with zero risk to your health or home appliances.
2. Infrared (IR) Curing Systems
For smaller parts, infrared curing lamps offer a compelling alternative. These portable units emit intense radiant heat that cures the powder from the outside in, often in 1-3 minutes. They are faster, use less energy, and contain the fumes to the immediate area (which still requires ventilation). However, they can be less effective on complex geometries with deep recesses and require careful technique to avoid scorching.
3. Low-Temperature Curing Powders
Some newer powder formulations cure at temperatures as low as 250°F - 300°F (121°C - 149°C). These "low-bake" powders are specifically designed for heat-sensitive substrates like plastics, composites, and wood, and are sometimes used on metal. The lower temperature reduces risk and energy use but may sacrifice some hardness and chemical resistance. Always verify compatibility.
The Final Verdict: Is a Powder Coat in Oven Right for You?
The journey of curing powder coat in an oven is a lesson in respecting the process and the hazards. It is a viable method for the highly dedicated, safety-obsessed DIYer who:
- Has a permanently dedicated, well-ventilated space (like a detached garage or shed).
- Will invest in a dedicated electric oven (new or carefully repurposed) and a separate temperature controller.
- Commits to proper PPE (respirator, gloves, eye protection) for every single use.
- Understands and follows the Technical Data Sheet for their specific powder.
- Is willing to ruin the oven and accepts that it can never be used for food again.
For the vast majority of hobbyists and even small fabricators, the risks—to health, home, and project success—far outweigh the benefits. The path of least resistance and greatest safety is to use a professional service for your powder coating needs. The satisfaction of a perfect, durable finish should not come at the cost of your family's health or your home's safety. If you do proceed down the DIY oven path, do so with eyes wide open, armed with knowledge, and bound by an unwavering commitment to safety protocols. The beautiful, tough finish is the reward for meticulous, responsible work.
