Wire Mesh For Concrete: The Essential Guide To Stronger, Crack-Resistant Surfaces
Is your concrete project doomed to crack and crumble before its time? Whether you're pouring a new driveway, building a foundation, or crafting a decorative patio, the secret to long-lasting, durable concrete isn't just in the mix—it's in the reinforcement. That's where wire mesh for concrete comes in, acting as the unsung hero that holds everything together under pressure. This isn't just about adding steel; it's about strategically distributing stress, controlling shrinkage cracks, and creating a monolithic slab that can withstand decades of use and weather. In this comprehensive guide, we'll demystify everything you need to know about using welded wire mesh (WWM), from selecting the right gauge to perfecting the installation technique, ensuring your next concrete project is built on a foundation of true strength and reliability.
Understanding the Role of Wire Mesh in Concrete Reinforcement
What Exactly is Wire Mesh for Concrete?

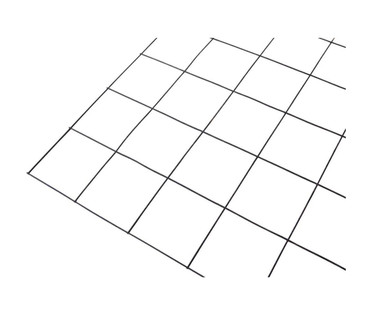

At its core, wire mesh for concrete is a grid of intersecting metal rods or wires, welded together at their junctions to form a rigid, sheet-like material. It's manufactured from high-carbon steel wire, typically coated with a rust-inhibiting material like black annealed wire or, for more corrosive environments, galvanized or epoxy-coated wire. The grid pattern creates a network of tensile strength that complements concrete's natural compressive strength. While concrete is incredibly strong when squeezed together, it is notoriously weak when stretched or bent. The wire mesh bridges this gap, holding the concrete matrix together and preventing the propagation of cracks that start from surface shrinkage or minor settlement.
The primary function of this concrete reinforcement mesh is crack control. As concrete cures and dries, it shrinks. Without reinforcement, this shrinkage creates tensile stresses that often result in random, unsightly, and structurally compromising cracks. The mesh doesn't necessarily prevent the initial micro-crack from forming, but it does hold the concrete pieces together, keeping cracks tightly bound and hairline, distributing the stress across a wider area. This transforms potential failure planes into a series of minor, acceptable cracks that don't impair the slab's integrity or load-bearing capacity.
Wire Mesh vs. Rebar: Knowing When to Use Which
A common point of confusion for DIYers and even some professionals is the difference between wire mesh and rebar (reinforcing bar). Both serve the reinforcement purpose, but they are suited for different scales and types of applications. Rebar consists of thick, rigid steel bars (typically #3, #4, #5, etc.) that are placed strategically, often in a grid pattern, and tied together with wire. It provides massive tensile strength and is the go-to choice for structural elements like foundations, footings, beams, and columns where heavy loads are expected.
Wire mesh for concrete, on the other hand, is lighter, more flexible, and easier to handle. It's ideal for slabs-on-grade—such as residential driveways, garage floors, sidewalks, patios, and industrial warehouse floors. The smaller diameter wires and closer spacing of the grid are perfect for controlling the surface cracks and providing uniform reinforcement across a wide, thin plane. For most standard residential and light commercial flatwork, welded wire fabric (WWF) is not only sufficient but often more practical and cost-effective than rebar. A general rule of thumb: if you're pouring a slab more than 5 inches thick or expecting heavy point loads (like from a large machine), consult an engineer about incorporating rebar. For typical 4-inch to 6-inch residential slabs, the correct wire mesh is the standard, recommended practice.
Types of Wire Mesh for Concrete: Choosing the Right Grid
Standard Welded Wire Mesh (WWM) and Its Specifications
When you walk into a supplier, you'll be faced with sheets or rolls of mesh labeled with a cryptic code like 6x6 W1.4xW1.4 or 6x6 10/10. Decoding this is key to selecting the right product. The first number (6x6) indicates the spacing of the wires in inches. In this case, the wires are spaced 6 inches on center both longitudinally and transversely. The second set of numbers (W1.4xW1.4) refers to the wire diameter. The "W" stands for "wire," and the number is the wire's diameter in thousandths of an inch (W1.4 = 0.140 inches). The metric equivalent is often given in millimeters (e.g., 2.5mm).
For most concrete reinforcement mesh applications, the most common and versatile specification is 6x6 W2.9xW2.9 (often sold as 6x6 6/6, where 6/6 refers to the wire gauge in the old "wire gauge" system, approximately 0.148 inches). This mid-weight mesh provides excellent crack control for standard 4-inch and 5-inch slabs. Lighter meshes like 6x6 W1.4xW1.4 (4/4) are used for very thin toppings or where minimal reinforcement is needed. Heavier meshes like 6x6 W4.0xW4.0 (9/9) are specified for industrial floors, heavy-duty driveways, or areas subject to greater stress. Always check local building codes, as they often mandate a minimum wire mesh size and spacing for concrete reinforcement.
Specialized Mesh Types: Galvanized, Epoxy-Coated, and Fiber-Reinforced Alternatives
For projects in corrosive environments—such as concrete exposed to de-icing salts, seawater, or certain soils—standard black wire mesh can rust and degrade over time, leading to concrete spalling. In these cases, galvanized wire mesh (coated with a layer of zinc) or epoxy-coated wire mesh provides a critical barrier against corrosion. While more expensive, they significantly extend the service life of the reinforced concrete.
Beyond traditional steel mesh, there are also synthetic fiber-reinforced meshes. These are grids made from high-strength polymers like polypropylene or fiberglass. They are non-corrosive, easy to cut and handle, and are particularly useful in applications where metal mesh might be problematic (e.g., in contact with certain electrical conduits or in very thin decorative toppings). However, they generally do not provide the same level of tensile strength as steel and are often used as a supplement to, or in specific scenarios instead of, traditional wire mesh for concrete.
The Critical Importance of Proper Installation
The "Float" or "Lift" Method: Positioning is Everything
You can have the perfect wire mesh, but if it's not positioned correctly within the concrete slab, its effectiveness is severely compromised. The single most important installation rule is that the mesh must be positioned in the upper third of the slab, typically 2 inches below the finished surface. This is often called the "float" or "lift" method. Why the top? Because tensile stresses from shrinkage and surface loads are highest near the top of the slab. Placing the mesh low, at the bottom, does little to control surface cracks.
Achieving this correct positioning requires the use of mesh supports or chairs. These are plastic or concrete blocks that sit on the subgrade and hold the mesh up to the desired height. For a 4-inch slab, you'd use 1.5-inch or 2-inch chairs. The mesh is then laid on top of these chairs. Do not simply lay the mesh on the ground and pour concrete over it; it will end up at the bottom, rendering it nearly useless for crack control. For large slabs, it's also crucial to overlap adjacent sheets of mesh. A minimum overlap of 6 inches in both directions is standard, and the wires at the overlap should be tied together with wire ties to ensure the two sheets act as one continuous unit.
Common Installation Pitfalls to Avoid
Several mistakes can sabotage your wire mesh for concrete installation:
- Letting the Mesh Sink: As concrete is placed and consolidated (vibrated), the mesh can sink if not adequately supported. Use enough chairs and ensure they are placed no more than 3-4 feet apart in both directions to prevent sagging.
- Insufficient Overlap: Failing to overlap sheets or overlapping by less than the recommended amount creates a weak spot in the reinforcement grid.
- Poor Consolidation: If the concrete isn't properly vibrated around the mesh, air pockets and voids can form underneath it, creating planes of weakness. The goal is for the concrete to flow completely around and encapsulate the wires.
- Rushing the Pour: Place the concrete carefully to avoid displacing the mesh from its chairs. Have a worker follow the pour with a rake or tool to gently reposition any mesh that gets pushed down.
- Ignoring Local Codes: Always verify the required wire mesh size, spacing, and placement depth with your local building department before starting.
The Tangible Benefits of Using Wire Mesh in Your Concrete
Enhanced Durability and Crack Control
The most obvious and valuable benefit of wire mesh for concrete is its dramatic improvement in crack control. It transforms the random, wide, and structurally concerning cracks that occur in unreinforced slabs into a network of very fine, tightly held cracks. These crack control joints are much less noticeable, prevent water and de-icing salts from penetrating deeply, and maintain the slab's load-transfer capability. This directly translates to a longer service life, reduced maintenance costs, and a more aesthetically pleasing surface for decades. For a homeowner, this means a driveway that doesn't heave or crack apart; for a business, it means a warehouse floor that remains smooth and functional under forklift traffic.
Increased Load Distribution and Impact Resistance
Beyond crack control, the concrete reinforcement mesh acts as a load distributor. When a point load (like a heavy vehicle tire or a piece of equipment) is applied, the mesh helps spread that concentrated force over a wider area of the concrete. This reduces the stress on any single point and prevents localized crushing or failure. This is particularly important for slabs that will see dynamic or impact loads. The mesh also adds a degree of toughness and impact resistance, helping the slab absorb shocks without shattering. While it doesn't make concrete indestructible, it significantly raises the threshold for damage from everyday loads and minor impacts.
Cost-Effectiveness and Ease of Use
Compared to a full rebar grid, wire mesh for concrete is significantly more cost-effective in terms of both material and labor. The sheets or rolls are lighter and can often be installed by a small crew without the need for specialized tying tools or the same level of skill required for rebar placement. The speed of installation is faster, which can reduce overall project timelines and labor costs. When you factor in the long-term savings from reduced cracking, repair, and replacement, the initial investment in proper wire mesh becomes an exceptionally wise financial decision. It's a classic case of doing it right the first time to avoid paying twice.
Practical Applications: Where to Use Wire Mesh for Concrete
Residential and Light Commercial Slabs
This is the bread and butter of wire mesh usage. Garage floors, residential driveways, patios, walkways, and pool decks all benefit immensely from the crack control provided by a properly installed 6x6 W2.9 mesh. For a standard 20'x20' garage slab, the mesh is a non-negotiable requirement in most building codes for good reason. Similarly, shed slabs and foundation pads for outdoor structures use mesh to ensure a stable, crack-free base. In light commercial settings, retail store floors, restaurant patios, and small warehouse areas are prime candidates.
Industrial and Specialty Concrete Floors
While heavy industrial floors often require a combination of rebar and mesh, wire mesh still plays a vital role. It's commonly used as a secondary reinforcement in post-tensioned slabs or as the primary reinforcement in thin industrial toppings (overlays on existing concrete). Agricultural concrete, such as in barns or feedlot areas, uses mesh to resist the stresses from livestock and equipment. Precast concrete elements, like wall panels or steps, are almost always reinforced with welded wire fabric for ease of manufacturing and consistent strength.
Repair and Overlay Projects
Wire mesh isn't just for new pours. It's a critical component in concrete repair and overlay systems. When resurfacing an old, cracked driveway with a thin layer of new concrete or a polymer-modified overlay, embedding a layer of synthetic or galvanized wire mesh into the top layer provides a new, reinforced skin that helps distribute loads and prevent reflective cracking from the old slab below. This technique breathes new life into worn-out surfaces at a fraction of the cost of full replacement.
Addressing Common Questions and Misconceptions
"Can I use wire mesh instead of a vapor barrier?"
No. This is a dangerous misconception. A vapor barrier (typically 6-mil polyethylene sheeting) is installed under the subgrade to prevent ground moisture from wicking up into the concrete. Wire mesh is a structural element placed within the concrete. They serve completely different, non-interchangeable functions. You need both: the vapor barrier for moisture control and the mesh for tensile strength.
"Is wire mesh necessary for a small, thin slab?"
For a purely decorative, very thin (less than 2 inches) concrete topping that isn't structural, mesh might be overkill. However, for any slab that will bear weight, support a structure, or be subject to temperature changes—regardless of size—wire mesh is highly recommended, and often required by code. Even a small walkway will benefit from crack control. When in doubt, reinforce it. The cost of adding mesh is minimal compared to the cost and frustration of repairing a cracked slab.
"What about fiber mesh? Can I use that instead?"
Macro-synthetic or steel fibers mixed into the concrete batch are an excellent alternative or supplement to traditional wire mesh for crack control. They create a three-dimensional reinforcement network throughout the slab. However, they do not provide the same definite, known tensile strength across a specific plane as a welded wire grid. For critical structural applications or where specific engineering requirements exist, wire mesh is still the specified, quantifiable reinforcement. Fibers are fantastic for reducing plastic shrinkage cracks and improving toughness, but many engineers and codes still require a wire mesh or rebar grid for primary reinforcement in slabs.
How do I cut and handle wire mesh?
Wire mesh for concrete is typically sold in 5'x10' sheets or on rolls. Cutting it requires bolt cutters or an angle grinder with a cut-off wheel. Always wear heavy-duty gloves and safety glasses, as the cut ends are sharp and can "snake" as you handle them. When lifting, roll it out and use your legs to avoid back strain. For roll stock, unroll it carefully on the subgrade before positioning with chairs. It's a two- or three-person job for sheets larger than 5x5 feet to manage the weight and floppiness safely.
Conclusion: Building a Legacy of Strength, One Slab at a Time
Wire mesh for concrete is far more than just a grid of steel; it's the fundamental difference between a concrete slab that merely exists and one that endures*. It is the affordable, practical, and engineered solution to concrete's greatest weakness—its brittleness under tension. By understanding the specifications, committing to proper installation techniques, and recognizing its vast array of applications, you empower yourself to create projects that stand firm against time, weather, and use. From the family home's garage floor to the bustling aisle of a retail store, this simple grid silently bears the load, controls the cracks, and ensures that the solidity you pour today remains solid for tomorrow. Don't let your next concrete pour be a gamble with cracks. Invest in the certainty of wire mesh reinforcement and build with confidence, knowing you've laid a foundation of true, lasting strength.
