Bottom Garage Door Seal: Your Ultimate Guide To Stopping Drafts, Water, And Pests
Is a chilly draft sneaking into your garage every winter, or are you constantly battling puddles after a rainstorm? What about those mysterious scratches on stored items or the faint rustling sounds at night? The culprit might be hiding in plain sight: your bottom garage door seal. This unassuming strip of material is the critical barrier between your garage interior and the outside world. A damaged or missing garage door bottom seal isn't just an inconvenience; it's a direct line for energy loss, moisture, pests, and noise. This comprehensive guide will transform you from a concerned homeowner into a confident expert on everything bottom garage door seal-related, from selection and installation to long-term maintenance.
What Exactly Is a Bottom Garage Door Seal?
A bottom garage door seal, often called a garage door sweep or threshold seal, is a flexible strip attached to the lower edge of your garage door. Its primary function is to form a tight, weatherproof seal against the garage floor when the door is closed. This seal compresses to fill the often-irregular gap between the door's bottom and the concrete or flooring surface. It's a simple yet engineered component that plays a massive role in your home's overall health and efficiency. Think of it as the weatherstripping for your largest entryway, but subjected to far more extreme conditions—direct sunlight, freezing temperatures, heavy vehicles driving over it, and constant exposure to the elements.
How the Bottom Seal Works: A Pressure and Compression System
The magic of a garage door bottom seal lies in its design. It typically has a rigid mounting channel (often aluminum) that screws to the door's bottom rail, and a flexible insert—usually made of rubber, vinyl, or a composite material—that hangs down. When you close the door, this flexible lip presses against the floor. A properly functioning seal creates even pressure along the entire length of the door. This compression blocks three main things: air infiltration (drafts), water penetration, and pest entry. The seal must be flexible enough to conform to minor floor imperfections but resilient enough to spring back and maintain contact without permanent deformation.
Common Materials: Rubber, Vinyl, and Beyond
The material of your bottom seal determines its durability, flexibility in cold weather, and resistance to wear.
- Rubber (EPDM): The gold standard for durability and all-weather performance. EPDM rubber resists cracking in extreme cold and degradation from UV rays. It's quiet and provides an excellent seal but can be more expensive.
- Vinyl (PVC): A cost-effective and common option. It's flexible and works well in moderate climates but can become brittle and crack in very cold temperatures over time.
- Aluminum with Brush or Rubber Fin: Often used for garage door threshold seals (attached to the floor). The brush style is excellent for sweeping debris and allowing some movement, while the rubber fin provides a solid barrier.
- Composite/Silicone Blends: These newer materials aim to combine the best properties—UV resistance, extreme temperature flexibility, and longevity—often at a premium price.
Why a Quality Bottom Garage Door Seal is Non-Negotiable
Ignoring a failing garage door bottom seal has tangible consequences that extend far beyond a minor annoyance. The seal is a frontline defense for one of the most vulnerable interfaces in your home.
Energy Efficiency and Significant Cost Savings
Your garage, especially if attached, is a major source of thermal bridging. The U.S. Department of Energy estimates that garages can account for up to 20% of a home's total heat loss in winter and heat gain in summer. A gap under the door acts like a vacuum, sucking conditioned air from your home into the garage and out to the elements, or vice versa. This forces your HVAC system to work overtime. Sealing that gap with a proper bottom garage door seal can reduce energy bills by 5-15% annually, depending on your climate and garage's insulation. It's one of the most cost-effective home energy efficiency upgrades you can make, often paying for itself within a single season.
Pest and Insect Prevention: Blocking the Uninvited
That tiny gap is a superhighway for pests. Rodents like mice and rats can squeeze through openings as small as ¼ inch. Insects, spiders, and even snakes can easily navigate the space under a garage door. Once inside the garage, they can chew on stored items, wiring, and insulation, and eventually find their way into your living spaces. A intact, well-sealed garage door bottom seal is a fundamental part of integrated pest management, creating a physical barrier that is far more reliable and less toxic than chemical solutions alone.
Moisture, Water, and Salt Damage Protection
Water is a garage's worst enemy. Rain, melting snow, and street slush will flow directly under a door with a compromised seal. This leads to:
- Flooded floors and damaged stored belongings.
- Erosion of the concrete slab over time, creating larger, uneven gaps.
- Corrosion of metal components (springs, tracks, hardware) from constant moisture and road salt.
- Mold and mildew growth in damp, dark corners, which can impact indoor air quality.
A high-quality bottom seal, especially a garage door threshold seal installed on the floor itself for severe weather, is your primary defense against water intrusion.
Noise Reduction and Enhanced Comfort
A gap under the door acts as a sound funnel. You'll hear more street traffic, wind, and neighbor noise inside the garage and, by extension, in adjacent living areas. The garage door bottom seal provides acoustic dampening. Furthermore, it blocks dust, dirt, leaves, and debris from being blown or swept into your garage, keeping the space cleaner and reducing the need for constant sweeping. This contributes to a more comfortable and usable garage space, whether it's a workshop, gym, or storage area.
Choosing the Perfect Bottom Garage Door Seal for Your Home
Selecting the right garage door bottom seal isn't a one-size-fits-all task. The wrong choice leads to premature failure and wasted money.
Step 1: Precise Measurement is Everything
Before you buy anything, measure your garage door's bottom width accurately. Measure from the inside face of one side jamb to the other. Always buy a seal slightly longer (by 1-2 inches) than your measurement. You will trim it to fit perfectly during installation. Also, note the depth of your door's bottom rail (the horizontal piece at the bottom) to ensure the mounting channel fits correctly.
Step 2: Matching Material to Your Climate and Needs
- Cold Climates (Freezing Winters): Prioritize EPDM rubber or high-grade silicone blends. These remain flexible in sub-zero temperatures, preventing cracking and ensuring a continuous seal. Avoid standard vinyl.
- Hot, Sunny Climates: Look for materials with excellent UV resistance to prevent sun-rotting and hardening. EPDM and certain composites excel here.
- High-Traffic/Heavy-Duty Use: If you have a workshop with frequent foot/vehicle traffic or store heavy items, choose a seal with a reinforced internal spine or a thicker, more robust profile to resist crushing.
- Pest Problems: Opt for a seal with a solid, continuous rubber fin rather than a brush style for the bottom door seal. Brushes can allow small insects to pass. For extreme pest issues, consider pairing a door seal with a garage door threshold seal on the floor.
Step 3: Understanding Profile Styles

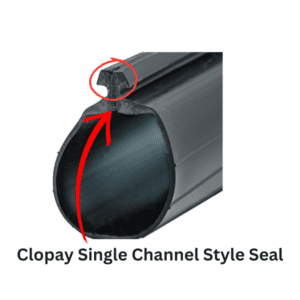

- Standard "U" or "J" Channel: The most common type. The channel mounts to the door, and the flexible insert slides or snaps in.
- Retrofit or Adhesive-Back: Useful for doors without a pre-existing mounting channel. The adhesive must be exceptionally strong and rated for garage conditions.
- Threshold Seal (Floor-Mounted): Installed directly on the concrete floor. This is the ultimate barrier for water and pests, often used in conjunction with a door-mounted seal for a double-seal system.
Your Complete Bottom Garage Door Seal Installation Guide
For most standard garage door bottom seal replacements, the process is a straightforward DIY project requiring basic tools and about 30 minutes.
Tools and Materials Checklist
- New bottom garage door seal kit (correct size and type)
- Socket wrench or screwdriver (to remove old seal)
- Tape measure
- Utility knife or hacksaw (for trimming)
- Drill (if new holes are needed)
- Pencil
- Lubricant (silicone spray for stubborn old seals)
- Work gloves
Step-by-Step Installation Process
- Open the Door Fully & Disconnect Opener: For safety, unplug the garage door opener. Manually open the door fully and secure it in the open position if possible.
- Remove the Old Seal: Locate the screws or bolts holding the aluminum channel to the door's bottom rail. Remove them. The old rubber/vinyl strip may be stuck. Apply lubricant or gently pry it out with a flathead screwdriver. Clean the mounting surface thoroughly of dirt and old adhesive.
- Prepare the New Seal: Lay the new seal alongside the door. Mark the exact length needed. Using a utility knife (for rubber/vinyl) or hacksaw (for aluminum channel), cut the seal to size. Ensure a clean, straight cut.
- Install the New Channel: Position the new aluminum channel on the door's bottom rail, ensuring it's centered and level. Pre-drill holes if necessary. Secure it with the provided screws, tightening firmly but not so hard that you crush the channel or strip the hole.
- Insert the Flexible Seal: Slide or snap the flexible seal insert into the channel. Start at one end and work your way along, ensuring it seats fully and evenly. Trim any excess if the design requires it.
- Final Check: Close the door slowly. Watch the seal make contact with the floor. It should compress evenly along its entire length without buckling or leaving large gaps. Open and close the door several times to test the action.
Common Installation Pitfalls to Avoid
- Not Trimming to Length: A seal that's too long will buckle and fail. A seal that's too short leaves a gap. Always measure and cut precisely.
- Mounting Crooked: An unlevel seal will only contact the floor at one or two points. Use a spirit level.
- Over-Tightening Screws: This can warp the channel and prevent the seal from flexing properly.
- Ignoring Floor Condition: If your concrete floor is severely cracked, uneven, or has a high garage door threshold, you may need a threshold seal or to repair the floor first for the bottom seal to be effective.
Maintenance, Troubleshooting, and When to Replace
A garage door bottom seal is a wear item and will eventually need attention. Proactive maintenance extends its life.
Regular Inspection Checklist (Do This Twice Yearly)
- Visual Check: Look for cracks, cuts, chunks missing, or areas that are flattened and no longer spring back.
- Flexibility Test: Press on the seal with your finger. It should be supple and return to shape immediately. If it's hard, brittle, or leaves a permanent indentation, it's failing.
- Seal Test: On a sunny day, close the door and look for light shining through the bottom from inside the garage. On a rainy day, check for water trails or puddles inside after a storm. Use a smoke pen or incense stick inside the garage with the door closed to detect air leaks.
- Check Mounting: Ensure the channel is still securely fastened to the door. Tighten any loose screws.
Repair vs. Replace: Making the Call
- Minor Damage: A small, clean cut in a rubber seal can sometimes be temporarily patched with a high-quality garage door seal adhesive or waterproof silicone caulk, but this is a stopgap.
- General Deterioration: If the seal is brittle, cracked, or compressed (especially in cold weather), replacement is the only solution. The cost of a new bottom garage door seal is minimal compared to the energy loss and potential damage.
- Channel Damage: If the aluminum mounting channel is bent, corroded, or broken, you must replace the entire kit.
Seasonal Maintenance Tips
- Winter: In cold climates, ensure the seal is clean of ice and snow buildup. Rock salt and ice melt can accelerate degradation. Rinse the seal with a hose during warmer spells.
- Summer: Clean the seal and the floor contact area with a mild detergent to remove dirt and grit that can act as an abrasive, wearing down the seal faster.
- Year-Round: Keep the area where the seal contacts the floor free of large debris, stones, or tools that could puncture or tear it when the door closes.
Bottom Garage Door Seal: Frequently Asked Questions
Q: How much does a bottom garage door seal cost?
A: A standard garage door bottom seal replacement kit typically costs between $15 and $50, depending on material quality and length. Professional installation adds $50-$150. It's one of the most affordable and impactful garage upgrades.
Q: Can I install a bottom seal on an uneven garage floor?
A: For severely uneven floors, a standard bottom seal may not seal perfectly. You have two options: 1) Install a garage door threshold seal on the floor itself, which can bridge minor gaps, or 2) Use a brushed or flexible threshold seal designed for uneven surfaces. Sometimes, a floor repair or self-leveling compound is needed first.
Q: How long does a garage door bottom seal last?
A: Lifespan varies dramatically by material and climate. Standard vinyl seals may last 2-4 years in harsh sun or cold. EPDM rubber seals can last 5-10 years or more with proper care. Extreme weather and chemical exposure (like road salt) shorten life.
Q: Will a new bottom seal fix a garage door that won't close properly?
A: Sometimes, but not usually. A severely damaged or missing seal can sometimes interfere with the door's safety reversal system (the photo-eye sensors) if it's dragging on the floor and causing the door to reverse. However, if the door itself is misaligned, has broken springs, or track issues, a new seal won't fix it. The seal is a finishing component, not a fix for major mechanical problems.
Q: What's the difference between a bottom seal and a threshold seal?
A: A bottom garage door seal mounts to the door itself. A threshold seal (or floor seal) mounts to the garage floor. For maximum protection, especially against water and pests, they are often used together as a double-seal system.
Conclusion: Seal the Deal on Comfort and Savings
Your bottom garage door seal is a small component with an enormous impact on your home's comfort, efficiency, and protection. It's the final line of defense against the uncontrolled exchange of air, water, and unwanted visitors between your garage and the outside world. Investing a small amount of time and money in selecting the right garage door bottom seal—a durable EPDM rubber for cold climates, a UV-resistant vinyl for sunny areas—and installing it correctly pays immediate dividends. You'll see a difference in your energy bills, notice a quieter, drier, and cleaner garage, and gain peace of mind knowing you've blocked a major entry point for pests. Don't underestimate this simple upgrade. Take a few minutes this weekend to inspect your seal. If it's cracked, brittle, or missing, replace your bottom garage door seal today. It's a foundational home maintenance task that delivers tangible, long-lasting benefits for any homeowner.
