Furnace Air Flow Direction: The Hidden Key To Home Comfort And Efficiency
Did you know your furnace's air flow direction could be secretly hiking up your energy bills, creating cold spots in your living room, and shortening the lifespan of your entire HVAC system? It’s a fundamental design principle that homeowners rarely think about, yet it dictates everything from installation complexity to monthly heating costs. Understanding furnace air flow direction isn’t just for HVAC technicians; it’s essential knowledge for any homeowner looking to maximize comfort, efficiency, and system longevity. This comprehensive guide will demystify the critical role of air flow, explore the different configurations, and provide you with the actionable insights needed to make informed decisions about your home’s heart.
Why Furnace Air Flow Direction is Non-Negotiable for System Performance
The direction in which air moves through your furnace—whether it’s pushed up, down, or horizontally—is a core engineering decision made during manufacturing. This design choice directly impacts how the furnace integrates with your home’s ductwork, its physical placement in your mechanical room or closet, and ultimately, its operational efficiency. An upflow furnace draws cool air from the bottom and expels heated air from the top, making it ideal for basement or ground-floor installations where ductwork runs upward. Conversely, a downflow or counterflow furnace pulls air from the top and pushes it downward, perfect for homes with attic or rooftop duct systems where air must be supplied to floors below.
Choosing the wrong air flow direction for your home’s layout forces your system to work against gravity and duct design. This mismatch creates excessive static pressure, causing the blower motor to strain, reducing airflow over the critical heat exchanger, and leading to uneven heating. According to the U.S. Department of Energy, improper airflow can reduce HVAC efficiency by up to 15%. Furthermore, restricted airflow causes the heat exchanger to overheat, potentially cracking—a serious safety hazard that can leak carbon monoxide into your home. Therefore, matching your furnace’s air flow direction to your existing ductwork is not a recommendation; it’s a prerequisite for a safe, efficient, and durable heating system.
The Inner Workings: How a Furnace Moves Air
To appreciate the importance of direction, you must first understand the journey of air through a modern forced-air furnace. The process is a coordinated cycle of intake, heating, and distribution, all orchestrated by the blower motor and governed by the heat exchanger.
It begins when your thermostat calls for heat. The induced draft motor or blower starts, pulling cool, return air from your home through the return air ducts and filter. This air passes over the heat exchanger—the metal chamber where combustion gases heat the metal walls without mixing with the air stream. The now-warmed air is then forcefully pushed by the blower wheel through the supply air plenum and out into your home’s supply ductwork, traveling to each room via registers. The direction this air exits the furnace cabinet—up, down, or sideways—is determined by the internal design of the blower assembly and the orientation of the supply and return connections. A properly sized and aligned system ensures laminar, unrestricted flow. However, if the air flow direction conflicts with your ductwork’s layout (e.g., a downflow furnace connected to ducts that run upward), you create turbulence and pressure imbalances. This disrupts the delicate balance of combustion and heat transfer, forcing components to operate outside their optimal parameters.

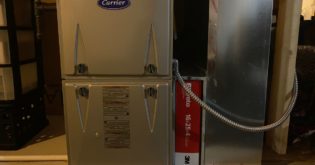

Upflow Furnaces: The Most Common Configuration
Upflow furnaces are the industry standard for a reason. In this design, cool return air enters the furnace near the bottom, travels upward across the heat exchanger, and the heated supply air exits from the top. This configuration leverages natural convection—hot air rises—working with physics rather than against it.
This design is overwhelmingly installed in basements, crawlspaces, or ground-level mechanical rooms where the main duct trunk lines run vertically upward to distribute air to the floors above. The upward flow easily connects to these vertical stacks. Key advantages include simpler installation in these common scenarios, efficient use of space, and often quieter operation as the blower is isolated at the bottom. A critical installation tip: ensure the return air plenum is properly sealed to the bottom of the unit and that the supply plenum is securely attached to the top. Any leaks here will severely compromise system performance and allow conditioned air to escape into unconditioned spaces like a basement. When shopping for an upflow unit, pay close attention to its static pressure rating; a higher rating means the blower can handle more restrictive ductwork, which is common in older homes.
Downflow and Counterflow Furnaces: For Attic and Rooftop Ducts
Downflow furnaces (also called counterflow units) are the mirror opposite of upflow models. Return air enters at the top of the cabinet, is forced downward over the heat exchanger, and the heated supply air exits from the bottom. This configuration is essential for homes where the primary duct trunk runs are located in an attic or on a roof deck. In these cases, air must be supplied downward to the living spaces below.
Installing an upflow furnace in this scenario would require complex, inefficient 180-degree duct turns, creating immense static pressure. The downflow design provides a straight, gravity-assisted path. However, these installations present unique challenges. Access for service is often difficult in tight attics. Furthermore, the condensate drainage for high-efficiency condensing furnaces must be meticulously planned, as the drain line exits from the bottom of the unit and must be sloped correctly to prevent freezing or backups. A crucial consideration for downflow units is the clearance to combustibles on the bottom, as the supply air plenum is attached there. Always follow the manufacturer’s installation manual to the letter regarding these clearances to maintain safety and warranty validity.
Horizontal Flow Furnaces: The Space-Saving Solution
When space is extremely constrained—such as in a low-crawlspace, a closet with limited headroom, or an old home with no basement—horizontal flow furnaces become the necessary solution. As the name implies, the air moves horizontally through the unit: return air enters one side (often the left or right) and supply air exits the opposite side.
These units are typically “sidewall” or “horizontal” models. Their compact footprint is their greatest strength, but they come with important installation caveats. First, the blower orientation must be compatible with the available duct connections. Second, and critically, the drainage for condensing models must be carefully considered, as the condensate trap and drain are often located on one end. Third, horizontal units can be more sensitive to ductwork vibration and noise transmission because the blower is closer to the duct walls. Using flexible duct connectors and proper isolation can mitigate this. They are also frequently used in mobile homes or specialty installations where traditional vertical clearance is impossible. Always verify that a horizontal model is rated for your specific orientation; some are designed for left-hand return/right-hand supply, or vice-versa, and cannot be flipped in the field.
The Direct Link Between Air Flow Direction and Energy Efficiency
The connection between correct air flow direction and AFUE (Annual Fuel Utilization Efficiency) is profound and often underestimated. AFUE ratings are achieved under ideal, laboratory-test conditions with perfectly designed ductwork. In the real world, a mismatched air flow direction is a primary contributor to “system delivered efficiency” falling far below the rated AFUE.
When air flow is restricted or turbulent due to poor direction matching:
- Blower Motor Workload Increases: The motor must work harder to push air through convoluted duct paths, consuming more electricity (for ECM motors) or drawing more amps (for PSC motors).
- Heat Exchanger Performance Drops: Insufficient airflow over the heat exchanger causes it to run hotter, which can trigger high-limit switches (short cycling) and reduce the effective heat transfer rate. In extreme cases, it can cause cracking from thermal stress.
- Combustion Air Suffers: Many furnaces use the air flowing through the heat exchanger as a source of combustion air (atmospheric combustion). Poor airflow can starve the burner of oxygen, leading to incomplete combustion, soot buildup, and increased carbon monoxide production.
- Uneven Heating Occurs: Rooms far from the furnace or on different floors may receive inadequate airflow, leading to thermostat battles and longer run times.
A study by the Air Conditioning Contractors of America (ACCA) found that improperly designed duct systems, including incorrect air flow direction, can lead to 30% or more energy waste. Ensuring your furnace’s air flow is perfectly aligned with your duct system’s design is one of the most cost-effective ways to protect your energy investment.
Installation Day: Critical Considerations for Air Flow Direction
If you’re replacing an old furnace, the existing ductwork’s configuration is your starting point. Do not assume the old unit’s air flow direction was correct. Many older installations were done without proper design. A professional HVAC contractor should perform a Manual D calculation (duct design) to verify your existing ducts can handle the new unit’s airflow (measured in CFM – Cubic Feet per Minute) and that the connections will match.
Key installation checkpoints include:
- Plenum Sizing: The supply and return plenums (the boxes attached directly to the furnace) must be sized correctly for the unit’s CFM and match the main duct trunk size. An undersized plenum creates a bottleneck.
- Transition Ducts: If your duct size changes from the plenum to the main trunk, a transition piece must be used with a gradual taper (no more than a 30-degree angle) to minimize turbulence.
- Support and Clearance: The furnace must be level and securely supported. All required clearances to walls, combustibles, and other equipment (like a water heater) must be maintained as per the manufacturer’s specs, which vary by air flow direction.
- Condensate Management: For high-efficiency condensing furnaces, the location of the condensate drain outlet (often on the side or bottom) must be considered relative to the available drain line routing. Improper drainage can cause the internal condensate pump or trap to fail.
Troubleshooting Common Air Flow Direction Problems
Even with a correct initial installation, problems can arise. Here are symptoms of airflow issues potentially related to direction or duct design, and how to diagnose them:
- Symptom: Uneven Heating/Cooling. Some rooms are consistently warmer or cooler.
- Diagnosis: Check for closed or blocked supply/return registers. Then, perform a simple duct leakage test by holding a lit incense stick near duct joints in the problem area. If the smoke is drawn into the joint, you have a leak. More complex issues like undersized ducts or sharp bends require professional pressure testing (duct blaster test).
- Symptom: High Utility Bills & Short Cycling. The furnace turns on and off very frequently.
- Diagnosis: This often points to high static pressure. A technician can measure static pressure using a manometer at the furnace’s supply and return ports. Readings above the manufacturer’s specification indicate a restriction—could be a dirty filter, undersized ducts, or a mismatched air flow direction causing excessive turns.
- Symptom: Blower Motor Noise (Squealing, Rattling).
- Diagnosis: While sometimes a failing motor, noise is frequently due to vibration transmitted through ductwork because of poor support or an imbalance caused by turbulent airflow from a bad duct connection. Check for loose duct connections and ensure the blower compartment access panel is secure.
- Symptom: Overheating & High-Limit Switch Tripping.
- Diagnosis: This is a critical safety issue. The most common cause is insufficient airflow. Start by replacing the air filter. If the problem persists, the heat exchanger may be starved of air due to a severely restrictive duct system, a failed blower motor, or a blocked flue/vent pipe (which can also be related to airflow dynamics). Shut the furnace off and call a professional immediately.
Can You Change Your Furnace’s Air Flow Direction Yourself?
The short, critical answer is: Almost never. Furnace air flow direction is determined by the internal configuration of the blower assembly, heat exchanger orientation, and the location of the gas valve and burners. While some manufacturers offer field-convertible models, the process is complex, requires complete disassembly of the unit, and must be done in strict accordance with the manufacturer’s conversion instructions.
Attempting a DIY conversion without proper certification voids the warranty, violates building codes, and creates grave safety risks. You could misalign the heat exchanger, disrupt the gas manifold, or create a path for combustion gases to mix with household air. This is a job for a licensed HVAC technician who is familiar with your specific furnace model’s conversion procedure and can recalibrate the gas pressure and pressure switches afterward. For the vast majority of homeowners, the correct approach is to select the correct air flow direction at the time of purchase based on your ductwork, not to try and change it after installation.
The Future of Furnace Air Flow: Variable Speed and Smart Design
Technology is reshaping how we think about airflow. The rise of variable-speed (ECM) blower motors allows furnaces to adjust their speed based on real-time demand. This mitigates some issues of static pressure, as the motor can ramp up to overcome minor restrictions. However, it does not eliminate the need for correct directional matching; a variable-speed motor in a poorly designed duct system will simply work harder and longer, still costing you money.
Furthermore, communicating furnaces paired with smart thermostats can optimize blower speed and runtime for even distribution and efficiency, but they operate within the physical constraints of the ductwork. The future of residential heating points toward ducted mini-split systems and variable-capacity gas furnaces that are more flexible in installation but still require thoughtful planning of air distribution paths. The fundamental physics of air moving from point A to B remains; smart technology helps manage it, but it cannot compensate for a fundamentally flawed duct layout with the wrong air flow direction.
Conclusion: Mastering the Flow for a Better Home
Furnace air flow direction is far more than an installation detail; it is the foundational blueprint for your home’s thermal comfort and energy health. From the upflow unit in your basement to the downflow model in your attic, each configuration serves a specific architectural purpose. Choosing correctly—or diagnosing a mismatch—can be the difference between a system that hums along efficiently for 20 years and one that guzzles energy, creates discomfort, and fails prematurely.
Your action steps are clear: Know your ductwork. Before any purchase or replacement, understand where your main trunk lines are located (attic, basement, crawlspace). Insist on a professional Manual D evaluation from a reputable contractor. Never ignore symptoms like uneven heating or short cycling, as they are your system’s distress signals about airflow. And above all, respect the engineering. A furnace is a finely tuned appliance where air flow direction is a core spec, not an optional feature. By honoring this principle, you invest in a home that is not only warmer in winter but also smarter, safer, and more efficient every single day.
