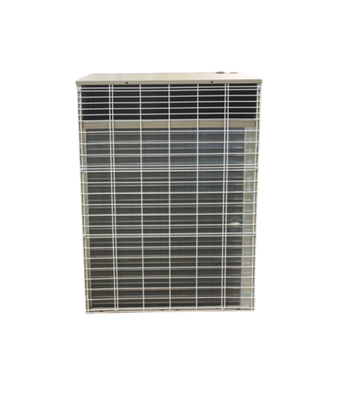

Installing A Through The Wall AC Unit: Your Complete Step-by-Step Guide To A Cool, Comfortable Home

Have you ever stared at that bulky, inefficient window air conditioner, dreaming of a sleeker, quieter, and more powerful cooling solution for your home? What if you could achieve professional-grade comfort without the hassle of a full HVAC system overhaul? The answer might be installing a through the wall AC unit. This often-overlooked option offers a permanent, energy-efficient, and aesthetically pleasing alternative to traditional window units, but the process requires careful planning and execution. This definitive guide will walk you through every single step, from initial assessment to final power-up, ensuring your installation is safe, correct, and built to last.

Why Choose a Through-the-Wall Air Conditioner?

Before diving into the "how," it's crucial to understand the "why." Through-the-wall units are not just a different-shaped air conditioner; they represent a distinct category with significant advantages. Unlike window units that sit on the sill and block light, through-the-wall ACs are installed within a custom-cut opening in an exterior wall. The bulk of the unit, including the compressor and condenser, resides outside the home, housed in a dedicated wall sleeve. This design philosophy leads to several key benefits.

First and foremost is noise reduction. Because the noisy compressor components are largely outside, indoor noise levels are dramatically lower—often by 30-50% compared to a similarly sized window unit. This creates a much more peaceful environment for sleeping, working, or relaxing. Second is security. Once installed, the unit is a permanent fixture. There's no lifting a heavy unit in and out each season, and the interior portion is secured from the outside, eliminating a common entry point for burglars. Third is energy efficiency and performance. Through-the-wall units are typically built to higher standards with better seals and more robust components. They can handle larger spaces more effectively and often have higher SEER (Seasonal Energy Efficiency Ratio) ratings, leading to lower electricity bills over time. Finally, there's the aesthetic factor. They sit flush with the wall, don't block windows, and maintain the clean lines of your home's exterior and interior.

• Has Jessica Tarlov Been Fired
• Amber Frey
• Tiktits
• Jin Ha

Phase 1: Essential Preparation Before You Cut

The single most critical phase of installing a through the wall AC unit happens long before you pick up a saw. Rushing into cutting a hole is the fastest route to a costly, dangerous, and ineffective installation. This phase is all about assessment, planning, and acquiring the correct equipment.

Selecting the Perfect Location

The location you choose will dictate the success of your entire project. You must consider several factors simultaneously. Proximity to a dedicated electrical circuit is non-negotiable. You cannot use an existing outlet on a shared circuit. A new, dedicated 220V or 240V line (for units over 10,000 BTUs) or a dedicated 115V line (for smaller units) must be run directly from your main panel to the installation site by a licensed electrician. This is not a DIY electrical task for most homeowners.

Next, structural integrity is paramount. You must locate and avoid all studs, wiring, plumbing, and ductwork within the wall. Use a high-quality stud finder with AC wire detection and, if possible, consult your home's blueprints. The ideal spot is between two studs in a section of wall that is clear of obstructions. Also, consider the exterior clearance. The outdoor portion of the unit needs ample space (typically 12-24 inches on all sides) for unrestricted airflow. Check for overhanging eaves, decks, fences, or shrubbery that could impede ventilation. Finally, think about interior airflow. Ensure the unit's discharge won't be blowing directly onto a frequently used seating area or bed, causing discomfort.

• Wwwmovierulzcom 2024 Download
• Is Sandra Bullock A Man
• Haji Mastan
• Wwe Paige Sex Tape

Sizing Your Unit Correctly: It's Not Guesswork

Choosing the wrong size is one of the most common and costly mistakes. An undersized unit will struggle to cool the space, running constantly without achieving the set temperature, leading to high energy bills and premature wear. An oversized unit will cool the room too quickly, failing to properly dehumidify the air (leaving you with a cold, clammy feeling) and will also short-cycle, causing excessive wear on components.

To calculate the correct BTU (British Thermal Unit) rating, you need to measure the square footage of the room and consider specific factors:

• Standard Calculation: For a standard 8-foot ceiling, a general rule is 20 BTUs per square foot. A 400 sq. ft. room would need an 8,000 BTU unit.
• Adjustments:
  • Add 10% for rooms with high ceilings (over 9 feet).
  • Add 600 BTUs for each additional person regularly occupying the space beyond two people.
  • Add 4,000 BTUs for a kitchen or room with significant heat-generating appliances.
  • Reduce by 10% for heavily shaded rooms; increase by 10% for rooms with direct, intense sun exposure.
  • Reduce by 30% for extremely hot, dry climates if the unit will be used primarily at night.

Pro Tip: For the most accurate sizing, consider a Manual J Load Calculation performed by an HVAC professional. This detailed assessment factors in insulation values, window types, local climate data, and more.

The Non-Negotiable Wall Sleeve

You do not install the AC unit directly into the wall. You install a wall sleeve—a rigid, waterproof metal or heavy-duty plastic enclosure—that becomes the permanent, weatherproofed cavity in your wall. The AC unit then slides into and locks onto this sleeve. You must purchase the sleeve that is specifically designed and approved by your AC unit's manufacturer. Using a generic or incorrect sleeve will void warranties, cause improper sealing, and lead to water infiltration and structural damage. The sleeve's dimensions (width, height, depth) will be listed in your AC's installation manual.

Gathering Your Tool and Material Arsenal

With a plan in place, assemble your tools. Having everything ready will make the process smooth and safe.

Essential Tools:

• Safety Gear: Safety glasses, heavy gloves, dust mask (N95), hearing protection.
• Measurement & Layout: Tape measure, level (4-foot and smaller), pencil, chalk line.
• Cutting Tools:Reciprocating saw (Sawzall) with long metal-cutting blades is the primary tool. A jigsaw can be used for finishing cuts inside. A circular saw with a metal-cutting blade can make the initial plunge cuts.
• Drilling: Power drill/driver with various bits (including long wood/metal bits for pilot holes).
• Prying & Finishing: Pry bar, utility knife, putty knife, caulking gun.
• Lifting: A sturdy lifting strap or helper's lift. These units are heavy (100-200+ lbs). Never attempt to lift one alone.

Essential Materials:

• The manufacturer-specific wall sleeve.
• Your selected through-the-wall AC unit.
• Exterior-grade caulk or sealant (e.g., silicone or polyurethane).
• Foam backer rod for wide gaps.
• Weatherstripping or foam tape (often included with the sleeve).
• Screws and anchors suitable for your wall material (vinyl, wood, stucco, brick).
• Electrical conduit and fittings (if running new wire externally, though internal is preferred).
• Shims (wood or composite) for leveling the sleeve.

Phase 2: The Installation - From Hole to Home Comfort

Now, with preparation complete, we move to the physical installation. Precision is key at every step.

Step 1: Marking and Cutting the Opening

This is the most invasive step. With your location confirmed and all utilities marked, it's time to cut.

1. Position the Sleeve: Place the sleeve against the interior wall. Use a level to ensure it is perfectly plumb and square. Trace the outer perimeter of the sleeve onto the wall. Important: The sleeve's flange (the lip that sits against the interior wall) will cover a small margin, so your cut should be to the inside of this traced line for a tight fit.
2. Drill Pilot Holes: At each corner of your traced rectangle, drill a large hole (1/2" or so) all the way through the wall. This allows you to see the exact exterior cut line from the outside.
3. Cut the Exterior First (Recommended): Go outside and use the pilot holes to mark the exact cut line on the exterior siding or sheathing. Using your reciprocating saw, carefully cut through the exterior finish. This prevents damaging interior finishes if the saw binds.
4. Cut the Interior: Return inside and cut along your interior line through the drywall or paneling. You will now have a rough opening.
5. Enlarge and Clean: Use your reciprocating saw to carefully enlarge the opening, following the traced lines. Work slowly to avoid cutting too far. The goal is a hole that is just large enough for the sleeve to slide through from the outside. The sleeve must be installed from the exterior. Remove all cut debris.

Step 2: Installing and Securing the Wall Sleeve

This step creates the permanent, weatherproof envelope.

1. Apply Sealant: Run a continuous bead of exterior-grade caulk around the exterior flange of the sleeve (the part that will sit against the outer wall surface).
2. Insert the Sleeve: From the outside, carefully lift and slide the sleeve into the hole. It should fit snugly. The interior flange will rest against the interior wall surface.
3. Level and Plumb: Use your level on all sides to ensure the sleeve is perfectly vertical and horizontal. This is critical for the AC unit to seat properly and for drainage.
4. Secure the Sleeve: Through the pre-drilled holes in the sleeve's flange, drive screws into the wall studs or sheathing. Use washers if the flange has large holes. The sleeve must be firmly anchored with no movement. Do not overtighten and warp the flange.
5. Seal the Interior Flange: Inside, apply a bead of caulk where the interior flange meets the wall. Smooth it with a putty knife or finger. This seals against indoor air leakage and drafts.
6. Insulate the Gap: If there is any gap between the sleeve and the wall framing (common in older homes), fill it with foam backer rod and cover with caulk. This prevents air and water infiltration.

Step 3: Running the Dedicated Electrical Circuit

This step must be performed by a licensed electrician in most jurisdictions. The unit requires a dedicated circuit with the correct amperage and wire gauge (e.g., 20-amp circuit with 12-gauge wire for many 115V units). The electrician will:

• Install a new circuit breaker in your main panel.
• Run the appropriate gauge Romex or conduit in the wall cavity, avoiding the newly cut opening.
• Install a dedicated outlet (for plug-in units) or a direct disconnect box (for hardwired units) on the interior wall, ideally just below the AC unit.
• Ensure all connections are secure, grounds are proper, and the circuit is tested before any power is applied to the unit.

Step 4: Mounting the Air Conditioner

With the sleeve secure and power ready, it's time for the unit.

1. Prepare the Sleeve: Remove any shipping brackets or tape from the sleeve's interior rails. Install any included foam weatherstripping.
2. Lift with Care: Using your lifting strap or with a strong helper, carefully lift the AC unit. Never lift by the front grille or internal components. Use the built-in handholds on the cabinet sides.
3. Slide and Seat: Tilt the unit slightly upward (to aid in drainage) and slide it into the sleeve from the outside. It should glide smoothly on the sleeve's rails. Push it firmly until it is fully seated against the sleeve's back stop.
4. Secure the Unit: Most units have locking mechanisms—screws, brackets, or locking tabs—that engage with the sleeve. Consult your manual. Typically, you'll open the front grille and access screws that clamp the unit's chassis to the sleeve from the inside. Tighten all screws securely in a cross pattern to ensure an even, tight seal.

Step 5: Final Weatherproofing and Testing

The final touches make the difference between a dry home and a water-damaged one.

1. Exterior Sealing: From the outside, apply a generous bead of high-quality exterior caulk where the unit's cabinet meets the sleeve's exterior flange. This is the primary barrier against wind-driven rain. Smooth it to form a water-shedding bead.
2. Check the Drain: Most units have a drain hole or pan at the bottom of the outdoor cabinet. Ensure it is clear and angled downward so condensation can drip away from the wall.
3. Interior Gap: If there is a small gap between the unit's interior front and the wall, use the provided trim or a paintable PVC trim to cover it neatly.
4. The Moment of Truth: With everything secured and sealed, turn on the dedicated circuit breaker. Go to the unit's thermostat and set it to cool. Listen for the compressor and fan starting. Feel for cold air from the vents. Let it run for 15-20 minutes.
5. Inspect for Leaks: After it has run, check the exterior sealant bead for any signs of moisture. Also, inspect the interior around the unit for any water droplets, which would indicate a drainage or sealing issue.

Common Pitfalls and How to Avoid Them

Even with the best instructions, some mistakes are frequent. Installing a through the wall AC unit incorrectly often stems from skipping preparation.

• Ignoring the Manual: Your unit's specific manual is the ultimate authority. Always follow its torque specifications, clearance requirements, and unique instructions.
• Poor Sizing: Recalculate your BTU needs. If in doubt, size up slightly rather than down, but beware of significant oversizing.
• Inadequate Electrical: Using an adapter or sharing a circuit is a fire hazard. A dedicated circuit is mandatory.
• Bad Sealing: Skimping on caulk or not smoothing it leads to water ingress. Use quality caulk and apply it correctly.
• No Slope for Drainage: The unit must be tilted slightly backward (outdoor side down) as it sits in the sleeve to allow condensate to drain outward. If installed perfectly level, water can pool and leak inside.
• Blocking Airflow: Ensure shrubs, fences, or decks do not obstruct the unit's sides or rear. Maintain the manufacturer's minimum clearance.

Maintaining Your Through-the-Wall Investment

Your new unit is an investment in long-term comfort. Protect it with regular maintenance.

• Filter Care: Clean or replace the air filter every 2-4 weeks during heavy use. A clogged filter reduces efficiency, strains the compressor, and blows dust into your home.
• Coil Cleaning: Annually, gently clean the outdoor condenser coils with a soft brush and a gentle spray from a garden hose (with the unit OFF and unplugged). Remove any debris like leaves or grass clippings from the exterior grille.
• Seasonal Care: In spring, remove the interior front grille and vacuum any dust from the evaporator coils. In fall, clean the unit thoroughly and consider using a weatherproof cover designed for through-the-wall units to protect it from snow, ice, and leaves during the off-season. Never use a tarp that traps moisture.
• Listen and Watch: Be aware of unusual noises (grinding, squealing) or performance drops (less cooling, higher humidity). These are early signs of a problem needing professional service.

Conclusion: The Reward of a Job Well Done

Installing a through the wall AC unit is a moderately complex DIY project that pays enormous dividends in home comfort, quiet operation, and security. It is not a weekend task for the absolute beginner, but for a handy homeowner with patience, the right tools, and a commitment to following the steps precisely, it is an achievable and highly rewarding project. The key pillars of success are unwavering preparation, unwavering precision during the cut and sleeve installation, and unwavering adherence to electrical codes. By respecting the process, you transform a simple hole in the wall into a gateway for efficient, reliable, and peaceful cooling for years to come. If at any point you feel uncertain—especially regarding structural elements or electrical work—consulting or hiring a professional is the smartest investment you can make in the long-term health of your home and your new cooling system.
