Trailer 7 Pin Wiring: Your Ultimate Guide To Safe And Reliable Towing

Ever found yourself stranded on the side of the road with trailer lights that mysteriously stopped working, or worse, experienced a near-miss because your brake lights failed to signal your intentions to drivers behind you? The culprit is often the most overlooked yet critical component of your towing setup: the trailer 7 pin wiring system. This small, multi-pin connector is the lifeline of communication between your tow vehicle and your trailer, controlling everything from basic lighting to essential safety features. A properly wired and maintained 7-pin system isn't just about convenience; it's a non-negotiable element of road safety and legal compliance. This comprehensive guide will demystify every aspect of 7-pin trailer wiring, from understanding the color-coded pins to troubleshooting complex issues, ensuring your next journey is both safe and stress-free.

What Exactly is a Trailer 7 Pin Wiring System?

A trailer 7 pin wiring system refers to a standardized electrical connector, typically a round plug with seven metal pins or contacts, used to establish an electrical connection between a towing vehicle and a trailer. This system is the industry standard for larger trailers, including RVs, boat trailers, cargo haulers, and livestock carriers, where more than basic lighting control is required. The "7-pin" designation specifies the number of separate electrical circuits it can manage simultaneously. Each pin is assigned a specific function, from powering tail lights to operating electric brakes and providing a 12V auxiliary power source for trailer interior lights or battery charging.

The system operates on a simple principle: when you press the brake pedal in your truck, an electrical signal travels from the vehicle's brake light switch, through the wiring harness, out through the designated pin in the 7-pin plug, into the trailer's corresponding socket, and finally to the trailer's brake lights. The same process applies to turn signals, running lights, and reverse lights. The ground circuit, usually carried on pin 1 or the metal shell of the connector, completes the electrical loop for all these functions, making it arguably the most important connection of all. Understanding this fundamental flow of electricity is key to diagnosing any problem.

• Is Sandra Bullock A Man
• Carlyjane Onlyfan Leak
• Insta Mms
• Justin Jedlica

The standardization is governed by bodies like SAE International (specifically standard J2863 for heavy-duty vehicles), which defines the pin layout and function to ensure compatibility across different vehicle and trailer manufacturers. While this standard is widely adopted in North America, it's crucial to verify your specific vehicle and trailer documentation, as some manufacturers may use slightly different configurations. Always consult your owner's manuals before making any assumptions or cuts to the wiring.

The Critical Importance of Correct 7 Pin Wiring

Why should you invest time and effort into understanding this system? The answer boils down to three pillars: safety, legality, and equipment protection. Faulty or non-functional trailer wiring is a leading cause of trailer-related accidents. According to data from the National Highway Traffic Safety Administration (NHTSA), a significant percentage of trailer incidents involve lighting or braking failures. When your trailer's brake lights don't illuminate, the driver behind you has no warning of your deceleration, drastically increasing the risk of a rear-end collision. Similarly, non-functioning turn signals can lead to dangerous confusion during lane changes or turns.

Beyond safety, it's a matter of law. All 50 states have regulations requiring trailers to have operational lighting systems—tail lights, brake lights, and turn signals—that are synchronized with the tow vehicle. A malfunctioning 7-pin connector that results in these lights failing can lead to traffic stops, hefty fines, and even failed vehicle inspections. For commercial operators, the stakes are even higher, with potential out-of-service orders and violations that impact company safety ratings.

• Melia Mcenery
• Sondra Blust Nude
• Amber Frey
• Helene Zimmer

Finally, correct wiring protects your valuable equipment. An improper ground connection can cause erratic behavior, like flickering lights or, worse, send excess current through unintended paths, potentially damaging sensitive vehicle electronics like the tow package's control module or the trailer's LED circuits. A stable, correct connection ensures all components operate within their designed parameters, extending the life of your lights, brakes, and vehicle systems.

Decoding the 7 Pin: A Detailed Pin-Out Guide

The heart of trailer 7 pin wiring knowledge is the pin-out chart. While minor variations exist, the most common standard (often called the "American" or "RV" style) follows this layout when looking at the vehicle-side plug (the male plug that comes from your truck):

Key Insights from the Chart:

• The Ground is Paramount: Pin 1 (Black/Brown) is the primary ground for the entire lighting circuit. A poor ground here will cause multiple light failures. Always check this first.
• Brake & Turn Signal Combo: Pins 4 (Green) and 5 (Red) carry both the turn signal and brake light function for their respective sides. This is why your brake lights and blinkers share the same bulb in most trailers.
• The "Wild Card" Pins: Pins 6 (Yellow) and 7 (Brown) are the most variable. Pin 6 is almost always 12V constant power from the vehicle's battery, used to charge a trailer battery or power interior lights. Pin 7 is typically for reverse lights on RVs and fifth-wheels (to disengage brakes or raise landing gear). On simpler utility trailers, this pin might be unused or swapped for another 12V feed. This is the #1 source of confusion. You must trace the wires on your specific trailer to confirm.
• Wire Colors Are Guides, Not Gospel: While the SAE standard suggests color codes, manufacturers, especially on older trailers, may have used different colors. Never rely solely on color; always test for function with a multimeter or circuit tester.

Essential Tools and Materials for the Job

Before you touch a single wire, assembling the right toolkit will save you countless headaches and ensure a professional, reliable connection. Here’s your checklist:

• A Quality 7-Pin Connector: Don't skimp here. Purchase a reputable brand (like Pollak, Hopkins, or Bargman) with corrosion-resistant, gold-plated pins and a robust, waterproof rubber boot. The plastic housing should be UV-stable to prevent cracking in the sun.
• Wire Strippers/Cutters: A dedicated tool that cleanly cuts and strips wire insulation without nicking the copper strands. Nicked wires are future failure points.
• Crimp Connectors & Heat-Shrink Tubing: Use ring terminals or spade connectors for pin connections, sized correctly for the pin's hole. For permanent, weatherproof splices, heat-shrink butt splices are superior to standard electrical tape or wire nuts.

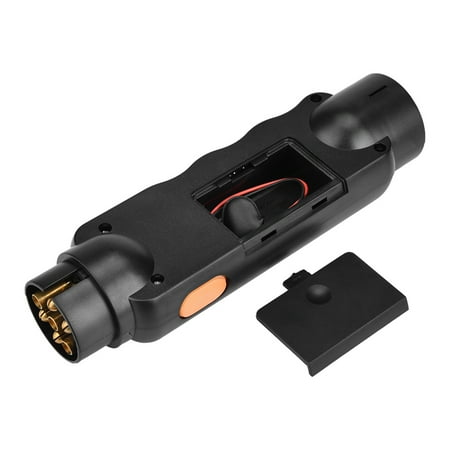

• Multimeter or 12V Circuit Tester: This is your most important diagnostic tool. A simple "test light" is okay, but a multimeter allows you to check for voltage, continuity (to find breaks), and verify grounds.
• Screwdrivers & Wrenches: For removing the old connector and securing the new one.
• Dielectric Grease: A must-have. Apply a small dab inside each pin socket before inserting the terminal. This silicone-based grease repels moisture, prevents oxidation, and ensures a solid metal-to-metal contact.
• Cable Ties & Electrical Tape: For organizing and protecting the final harness.
• Wire (if extending): If your trailer's wiring is short, you may need to extend it. Use 16-gauge primary wire for lighting circuits and 14-gauge for brake circuits to handle the current load.

Step-by-Step: Wiring a 7 Pin Connector from Scratch

Let's assume you're replacing a corroded or damaged connector on your trailer. This process is universal for most applications.

Step 1: Diagnosis and Preparation. First, confirm the problem is the connector. Use your multimeter at the trailer's 7-pin socket (with the vehicle connected and lights on) to check for voltage on each pin. If the socket has power but the lights don't work, the fault is in the trailer's wiring. If the socket has no power, the issue is in the vehicle's wiring or the connector itself. Once confirmed, disconnect the vehicle's battery to prevent any short circuits.

Step 2: Remove the Old Connector. Carefully cut the old wires one by one, leaving as much length as possible on the trailer side. Note which color wire was attached to which pin on the trailer side. This is your only reliable map. If the old connector is still intact, take a clear photo of the pin connections before cutting.

Step 3: Prepare the New Wires. Strip about 1/4 inch of insulation from each of your seven trailer wires. If you're extending wires, use heat-shrink butt splices to create strong, waterproof connections before you begin crimping terminals. Twist the wires together securely, apply a small amount of rosin-core solder for extra strength (optional but recommended), then slide the heat-shrink sleeve over the connection and apply heat.

Step 4: Crimp and Assemble. Slide the appropriate ring or fork terminal onto the stripped end of each wire. Using a proper ratcheting crimp tool, apply a firm, even crimp. Give the wire a gentle tug to ensure it's secure. Now, apply a pea-sized dab of dielectric grease into the back of each pin hole in the new 7-pin housing. Insert each terminal into its assigned pin slot according to your notes/photo and the standard pin-out. You should hear a distinct click as the terminal's locking barb engages.

Step 5: Secure and Waterproof. Once all seven terminals are seated, gently pull on each wire to double-check they're locked in. Secure the wire harness to the trailer's frame with cable ties, keeping it away from moving parts, hot exhaust, or sharp edges. Finally, fill the back of the connector housing with dielectric grease before snapping the rubber boot or cover into place. This creates a formidable barrier against water, dirt, and road salt.

Step 6: The Critical Test. Before hitting the road, perform a full systems check. With the trailer connected to the vehicle (and the vehicle battery reconnected), have an assistant operate the lights: turn on parking lights, left/right turn signals, and press the brake pedal. Walk around the trailer and verify every function: tail lights, brake lights (which should be brighter than tail lights), left/right turn signals, and if applicable, reverse lights. Use your multimeter to verify the 12V auxiliary power on pin 6 with the vehicle's ignition on.

Troubleshooting Common 7 Pin Wiring Nightmares

Even with perfect installation, issues can arise. Here’s how to diagnose the most common problems:

• "Only Some Lights Work" or "Lights are Dim/Flickering": This is almost always a grounding issue. The primary ground (Pin 1) must connect to clean, bare metal on the trailer frame. Scrape away paint and rust at the ground point. Check for a solid connection at the vehicle's ground point as well. Corrosion in the connector itself is the next suspect. Disconnect, clean all pins and sockets with a brass brush and contact cleaner, re-grease, and reconnect.
• "No Lights at All, But Fuses Are Good": Start at the source. Check the vehicle's tow package fuse (often in the engine bay or under-hood fuse box). Then, use your multimeter at the vehicle-side 7-pin plug (with lights on) to see if voltage is present at the correct pins. If no voltage at the plug, the fault is in the vehicle's wiring or its tow package module. If voltage is at the plug but not at the trailer socket, the fault is in the cable between the two connectors.
• "Brake Lights Don't Work, But Turn Signals Do": Since they share pins (4 & 5), this points to a problem specific to the brake light circuit. Check the brake light switch in the tow vehicle (it's often adjustable). Also, check the brake controller (if equipped) and its wiring. On the trailer, inspect the brake magnet wires for breaks or poor connections at the magnets themselves.
• "Trailer Brakes Lock Up or Don't Engage": This is a brake controller issue, not the 7-pin wiring itself, but the wiring carries the signal. Ensure the brake controller is properly calibrated. A constant 12V on Pin 2 (Blue) when brakes are not applied indicates a short or a faulty brake controller. A lack of voltage when applied indicates a break in the circuit or a faulty controller.
• "Reverse Lights Don't Work on My RV": Confirm your vehicle actually sends a reverse signal. Many trucks require a separate wiring harness or a specific fuse to be pulled/added to enable reverse light output on Pin 7. Consult your vehicle's tow wiring guide.

Advanced Considerations: Brake Controllers & Modern Vehicles

For trailers with electric brakes, the 7-pin system is only part of the equation. You need a brake controller mounted in the cab of your tow vehicle. This device senses the deceleration of your vehicle and sends a proportional, timed electrical current back through Pin 2 (Blue) to the trailer's brakes. Modern "proportional" or "inertia-based" controllers provide smooth, automatic braking, while time-delay models require manual adjustment. The 7-pin wiring must be correctly connected to the brake controller's output wire for this system to function.

Furthermore, modern vehicles, especially those with CAN bus networks (most cars and trucks from the early 2000s onward), can be finicky. They expect a certain resistance load on their lighting circuits. Simply tapping into the tail light wires can cause errors, flickering, or blown fuses. The solution is a vehicle-specific wiring harness (like those from Tekonsha or Curt) that "talks" to the vehicle's computer and provides a clean, isolated signal to the trailer. These harnesses often plug directly into the vehicle's existing wiring harness behind the tail lights, making installation cleaner and more reliable. When in doubt, this is the professional-grade solution.

Safety Best Practices: Beyond the Wires

• The "Lights-Out" Test: Before every long trip, perform a complete walk-around with all lights activated. Don't just glance; walk to the rear and verify each individual light cluster is functioning.
• Regular Inspection: At least twice a year, pull the 7-pin connector apart. Look for green/white corrosion (a sign of galvanic corrosion between copper and aluminum wires), bent pins, or cracked rubber. Clean and re-grease annually.
• Proper Fusing: The 12V auxiliary circuit (Pin 6) should be fused at the vehicle end, typically with a 15-20 amp fuse, to protect the vehicle's wiring from a short in the trailer.
• Secure Routing: The wiring harness from the vehicle to the trailer must have enough slack for turning but not so much that it drags on the ground. Use a breakaway switch on the trailer harness; this safety device applies the trailer brakes if the trailer becomes unexpectedly disconnected.
• Know Your Load: Overloading your trailer puts excessive strain on the braking system. Ensure your brake controller is properly adjusted for the trailer's weight. A controller set too "weak" will overheat the brake magnets; set too "strong" will lock the wheels.

When to Call a Professional: Know Your Limits

While many enthusiasts can successfully replace a 7-pin connector, certain situations demand professional expertise:

1. Diagnosing CAN Bus Issues: If your modern vehicle's lights flicker or throw errors after installing a basic harness, you need a technician who understands your vehicle's specific protocol.
2. Brake Controller Installation & Tuning: Properly integrating and tuning a brake controller for safe, balanced stopping is a skill developed with experience.
3. Complete Re-wiring: If the trailer's internal wiring is a rat's nest of splices and questionable repairs, a full re-wire by a trailer shop is the safest long-term investment.
4. Complex RV Systems: Fifth-wheels and large travel trailers often have multiple 12V systems, slide-outs, and sophisticated braking systems that interact with the 7-pin in non-standard ways.

Conclusion: Your Key to Confidence on the Road

Mastering your trailer 7 pin wiring system transforms a source of anxiety into a point of pride and confidence. It’s the tangible link that ensures your trailer is a safe, integrated part of your journey, not a liability. By understanding the standardized pin functions, committing to a meticulous installation with quality materials and dielectric grease, and adopting a routine of inspection and testing, you eliminate the vast majority of electrical failures. Remember the hierarchy: Ground first, then function. When in doubt, trace the circuit with a multimeter rather than guessing. This knowledge empowers you to troubleshoot minor issues instantly and recognize when a problem requires a specialist's touch. Investing a few hours in your trailer's wiring pays dividends in safety, legality, and peace of mind for every single mile you tow. So before your next adventure, pull that connector, give it some love, and hit the road with the confidence that your lights, brakes, and signals will perform exactly when you need them most.
