Toilet Flange Repair Ring: Your Ultimate Guide To Fixing Leaky, Wobbly Toilets
Is your toilet wobbling, leaking at the base, or emitting unpleasant odors? Before you panic about costly plumbing repairs or replacing the entire fixture, the culprit might be a small, inexpensive, and surprisingly simple part: the toilet flange repair ring. This unassuming component is the critical seal between your toilet and the drainpipe, and when it fails, it can lead to a cascade of problems. Yet, many homeowners have never heard of it. This comprehensive guide will transform you from a confused homeowner into a confident DIYer or an informed consumer who knows exactly what a plumber should be doing. We’ll dive deep into what a flange repair ring is, how to diagnose if you need one, the different types available, and provide a detailed, step-by-step installation guide. By the end, you’ll have all the knowledge to tackle this common plumbing issue effectively, saving you money, water, and a major headache.
Understanding the Foundation: What is a Toilet Flange and Why Does It Matter?
To truly grasp the importance of a repair ring, you must first understand its partner in crime—the toilet flange itself. Often called a waste flange or closet flange, this is the fitting that connects your toilet’s discharge horn to the soil stack (the main drainpipe in your floor). It’s typically made of PVC, cast iron, or brass and is secured to the subfloor with screws or bolts. Its primary job is to create a watertight and gas-tight seal. This seal is usually completed by a wax ring or a modern wax-free seal that sits on top of the flange, compressing when the toilet is tightened down to form the final barrier.
The Anatomy of a Flange and the Repair Ring’s Role
A standard flange has a few key parts: the hub that connects to the pipe, a flat rim that sits on the floor, and slots or holes for the toilet’s closet bolts (the bolts that hold the toilet down). Over time, this assembly can fail. The flange can crack, corrode, or become damaged during a previous installation or removal. The floor itself can rot or become uneven, causing the flange to no longer sit flush. This is where the toilet flange repair ring comes into play. It’s essentially a spacer or an adapter that fits over your existing, damaged flange to restore a level, solid, and sealed surface for a new wax ring and toilet. It’s not a permanent fix for a severely broken flange, but for many common issues, it’s the perfect, cost-effective solution.
Why Flanges Fail: The Common Culprits
Understanding failure modes helps in diagnosis. Water damage is the number one enemy. A slow leak from a failed wax ring or a cracked flange can rot the surrounding subfloor, often unnoticed until the toilet starts to rock. Improper installation is another huge factor. Using a flange that’s too short for the floor height (a condition called "low flange") or overtightening toilet bolts and cracking the porcelain or the flange itself are classic mistakes. Age and corrosion affect metal flanges, especially in older homes. Finally, settling foundations can shift everything out of alignment over decades. A repair ring compensates for many of these issues by providing a new, reliable mounting surface.
5 Unmistakable Signs You Need a Toilet Flange Repair Ring
How do you know the problem is the flange and not something else? Look for these clear indicators. Ignoring them can lead to water damage, mold growth, and sewage gas leaks into your home.
1. A Wobbly or Rocking Toilet: This is the most classic symptom. After tightening the toilet bolts, the toilet should not move at all. If it rocks side-to-side or front-to-back, the seal is broken. This movement constantly disrupts the wax ring seal, leading to leaks. The cause is almost always an uneven or damaged flange surface. A repair ring can level the playing field, quite literally.
2. Water Leaking from the Base: Notice water pooling around the base of your toilet, especially after a flush? This is a direct sign the wax seal has been compromised. While a new wax ring is always installed with a repair, if the underlying flange is cracked, corroded, or not level, the new ring will fail prematurely. A repair ring provides the solid, flat foundation a new seal needs.
3. Persistent Sewer Gas Odors: That rotten egg smell isn’t just unpleasant; it’s dangerous. Hydrogen sulfide gas from your sewer system is leaking into your bathroom because the seal is broken. A properly installed flange and repair ring with a new seal should be completely airtight. If odors persist after a toilet re-seat, the flange itself is likely the faulty component.
4. Visible Damage or Corrosion on the Flange: If you remove the toilet (a necessary step for any flange repair), you can inspect the flange directly. Look for cracks, especially around the bolt slots, significant rust on metal flanges, or pieces that are missing or broken off. Any physical damage means the flange can no longer provide a reliable seal or hold the toilet securely.
5. The Flange is Below Floor Level (Low Flange): This is a very common installation error, especially over thick subfloors or tile. If the top of the flange is more than 1/4 inch below the finished floor surface, the wax ring won’t compress properly. You’ll get leaks and odors. A flange extender—a specific type of repair ring—is designed specifically to raise the sealing surface to the correct height.
Types of Toilet Flange Repair Rings: Which One is Right for You?
Not all repair rings are created equal. Choosing the wrong one can doom your project from the start. Your choice depends on the specific problem with your existing flange.

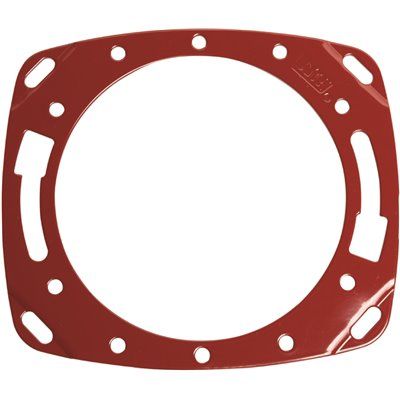

Standard Solid Repair Rings
These are the most common. They are typically made of durable PVC or sometimes cast iron. They are designed to bolt over your existing flange, using the existing flange’s bolt holes or new holes you drill. They have a raised rim that provides a new, level surface. Use when: Your existing flange is intact but slightly damaged, corroded, or just a bit uneven. It provides a fresh, clean sealing surface. They come in various heights (e.g., 1/2", 1") to compensate for minor height differences.
Flange Extenders
As the name implies, these are specifically for low flange situations. They are essentially a ring with a tall, central hub that sits inside the existing drainpipe, raising the sealing surface. They often have multiple height options or are stackable. Use when: The top of your existing flange is significantly below the finished floor level. They are the only correct solution for this common problem. Always measure the gap between the flange top and the floor to select the correct height.
Specialty and Adjustable Rings
For complex situations, there are adjustable repair rings. These might have sliding slots or multiple bolt hole patterns to accommodate oddly spaced or damaged existing bolt holes. Some are designed for use with plastic or ABS pipes where traditional methods might fail. Use when: Your existing flange has broken bolt slots, or the bolt hole pattern is non-standard. They offer flexibility where standard rings would not fit.
Wax-Free Seal Compatible Rings
Modern plumbing is moving away from traditional wax rings toward wax-free seals (often made of rubber or silicone). These seals have different height and compression requirements. Some repair rings are specifically designed or approved for use with these seals, featuring a smoother, more precise sealing surface. Check the manufacturer’s specifications if you plan to use a wax-free seal.
Step-by-Step Guide: How to Install a Toilet Flange Repair Ring
Ready to get your hands dirty? Here is a detailed, safe, and effective installation process. Always remember to turn off the water supply and drain the toilet completely before starting.
1. Remove the Toilet: This is the most intimidating step but is necessary. Turn off the water shut-off valve behind the toilet. Flush to empty the tank and bowl, using a sponge to remove any remaining water. Disconnect the water supply line. Remove the plastic caps covering the closet bolts at the base. Using a wrench, carefully loosen and remove the nuts. Gently rock the toilet back and forth to break the wax seal. Lift the toilet straight up—this is heavy, so get help! Place it on old towels or a drop cloth.
2. Clean and Inspect the Old Flange: With the toilet removed, you’ll see the old wax ring and the flange. Scrape away all the old wax residue from the flange and the toilet’s discharge horn using a putty knife. This is crucial for a clean seal later. Now, inspect the flange meticulously for cracks, corrosion, or broken parts. Also, measure the distance from the top of the flange to the finished floor. This measurement dictates your repair ring choice.
3. Prepare the Flange and Install the Ring: If your flange is in terrible shape (large cracks, major corrosion), you may need to replace the entire flange, which involves accessing the pipe from below—a much bigger job. Assuming it’s salvageable, place your chosen repair ring over the existing flange. Most rings have holes that align with the old flange’s holes. You may need to drill pilot holes through the ring into the flange. Use stainless steel screws (to prevent future corrosion) to securely fasten the repair ring to the old flange. Ensure it sits perfectly level and flush with the finished floor. For a low flange, an extender will screw directly into the pipe hub.
4. Install a New Wax (or Wax-Free) Seal: Place a new wax ring or your chosen wax-free seal directly on top of the now-level repair ring. If using a wax ring with a plastic funnel, ensure it’s centered. Some professionals recommend using a double wax ring for extra height, but this is generally not needed if you’ve properly addressed the flange height with a repair ring. Follow the seal manufacturer’s instructions.
5. Reinstall the Toilet: Carefully lift the toilet and align it straight down over the closet bolts. The bolts should go through the holes in the toilet base. Lower it gently so the toilet’s horn sits squarely on the seal. Do not rock or twist it. Place a washer and nut on each bolt. Hand-tighten the nuts, then use a wrench to tighten them in a criss-cross pattern, alternating sides. Crucially, tighten only until the toilet stops rocking. Do NOT overtighten! Overtightening can crack the porcelain base or crush the seal unevenly, causing leaks. The toilet should be snug, not strained.
6. Reconnect and Test: Reconnect the water supply line. Turn the water back on slowly, checking for leaks at the base and at the supply connection. Let the tank fill and flush several times. After each flush, check around the base and behind the toilet with dry paper towels. If no moisture appears, your repair is successful. Reattach the bolt caps. Wait at least 30 minutes before using the toilet heavily to allow the seal to fully compress and set.
Common Mistakes to Avoid During Flange Repair
Even with the best instructions, pitfalls can turn a simple fix into a disaster. Here’s what to watch out for.
- Skipping the Toilet Removal: You cannot properly inspect or repair a flange with the toilet in place. Guessing is a recipe for repeat failures.
- Using the Wrong Height Ring: This is the most frequent error. A ring that’s too short won’t fix a low flange. A ring that’s too tall will crush the seal or prevent the toilet from sitting on the floor. Measure twice, buy once.
- Overtightening the Toilet Bolts: This cracks porcelain and deforms seals. Tighten just enough to stop rocking. Use a level on the toilet tank to ensure it’s even.
- Not Cleaning the Old Wax: Any debris or old wax left on the flange or toilet horn will prevent a new, perfect seal. Be meticulous.
- Using Non-Stainless Fasteners: In a damp environment, regular steel screws will rust and eventually fail, potentially allowing the ring to shift. Always use stainless or brass screws.
- Ignoring a Rotting Subfloor: If the wood around the flange is soft, spongy, or rotten, you must repair the subfloor before installing the toilet. A repaired flange on a rotten floor will fail quickly. Cut out the damaged wood and sister in new, pressure-treated lumber.
Pro Tips for Long-Lasting Toilet Flange Repairs
Want a repair that lasts 10+ years? Incorporate these professional insights.
- Invest in Quality: Don’t cheap out on the repair ring. A solid PVC ring from a reputable brand is more reliable than a thin, flimsy one. Similarly, a quality wax ring (like those from Fluidmaster or Korky) is worth the few extra dollars.
- Consider a Wax-Free Seal: Products like the Fluidmaster Sure Seal or Korky Wax-Free seal are gaining popularity. They are reusable, mess-free, and often provide a more consistent seal than wax, especially on slightly uneven surfaces. They are less temperature-sensitive and won’t "dry out."
- Check the Toilet’s Contact with the Floor: After installation, the toilet’s base should be in full, even contact with the floor. If there’s a gap due to an uneven floor, use non-sagging silicone caulk (100% silicone) to fill the gap after the repair is tested and confirmed leak-free. This prevents wobbling and debris accumulation.
- Document Your Work: Take a photo of the repaired flange from underneath before you reinstall the toilet. This will be an invaluable reference if you or a future homeowner ever needs to address this again.
- Regular Inspection is Key: Make checking your toilet’s stability part of your annual home maintenance routine. A gentle wobble caught early is a much simpler fix than a major leak that has rotted the floor.
When to Call a Professional Plumber
While a flange repair is a classic DIY project, some situations demand a licensed professional.
- Extensive Subfloor Damage: If more than a few square feet of subfloor is rotten, or if the damage is near a load-bearing wall, structural repair may be needed. A pro can assess and fix this safely.
- No Access from Below: If your flange is damaged and you cannot access the pipe from the basement or crawlspace to replace the entire flange, a professional may have specialized tools or methods to repair it from above.
- Sewer Line Issues: If multiple fixtures are draining slowly or you have recurring backups, the problem may be deeper in the main sewer line, not the toilet flange. A plumber can perform a camera inspection.
- Lack of Confidence or Tools: If the thought of lifting a heavy toilet makes you nervous, or you don’t have the basic tools (wrench, putty knife, hacksaw), the cost of a plumber’s visit is often worth the peace of mind and guaranteed work.
- Code Compliance: In some municipalities, plumbing work must be permitted and inspected. A licensed plumber will ensure the repair meets local plumbing codes, which is crucial for home sales and insurance.
Conclusion: A Small Ring, A Big Impact
The toilet flange repair ring is a testament to the power of simple, clever engineering. It solves a host of common—and potentially destructive—problems with an affordable, accessible part. By understanding the signs of flange failure, selecting the correct repair ring for your specific issue, and following a meticulous installation process, you can conquer a leaky, wobbly toilet with confidence. This repair not only stops water waste and prevents costly structural damage but also restores the silent, secure function of one of your home’s most essential fixtures. Remember, the key is in the diagnosis and the details: measure accurately, clean thoroughly, and tighten judiciously. Armed with this knowledge, the next time you encounter a toilet that doesn’t sit quite right, you’ll know exactly what to do. You’ll save money, gain a valuable home maintenance skill, and enjoy the profound satisfaction of a job done right.
