Wiring Batteries In Parallel: A Comprehensive Guide To Boosting Your Power System
Are you looking for a way to increase the overall capacity and reliability of your power system? Do you want to know the secret to getting more juice out of your batteries? Wiring batteries in parallel is a simple yet effective solution that can help you achieve your goals. But before you start, let's dive into the world of battery wiring and explore the benefits and best practices of wiring batteries in parallel.
Wiring batteries in parallel is a technique used to connect multiple batteries together to increase their overall capacity and provide a stable power source. By connecting batteries in parallel, you can create a single battery bank that can supply more power than any single battery could alone. This is especially useful for applications such as renewable energy systems, backup power systems, and electric vehicles.
Understanding the Basics of Battery Wiring

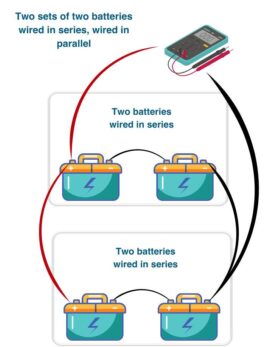

Before we dive into the details of wiring batteries in parallel, let's take a closer look at the basics of battery wiring. There are two main types of battery wiring: series and parallel. Series wiring involves connecting batteries together in a single line, where the positive terminal of one battery is connected to the negative terminal of the next. Parallel wiring, on the other hand, involves connecting batteries together in a network, where the positive terminal of one battery is connected to the positive terminal of the next, and the negative terminal of one battery is connected to the negative terminal of the next.
Why Wire Batteries in Parallel?
There are several reasons why wiring batteries in parallel is a popular choice for many applications. Here are some of the benefits:
- Increased Capacity: By wiring batteries in parallel, you can increase the overall capacity of your power system. This means that you can store more energy and provide a stable power source for longer periods of time.
- Improved Reliability: Wiring batteries in parallel provides a redundant power source, which means that if one battery fails, the others can take over and provide power.
- Reduced Cost: Wiring batteries in parallel can be more cost-effective than buying a single, high-capacity battery.
- Increased Flexibility: Wiring batteries in parallel allows you to easily add or remove batteries from the system, making it easier to scale up or down as needed.
How to Wire Batteries in Parallel
Wiring batteries in parallel is a relatively simple process, but it does require some planning and attention to detail. Here are the basic steps:
- Choose the Right Batteries: Not all batteries are created equal. When wiring batteries in parallel, you need to choose batteries that are compatible with each other and with your power system.
- Use the Correct Connectors: You'll need to use connectors that are specifically designed for battery wiring. These connectors should be rated for the voltage and current of your system.
- Connect the Batteries: Connect the positive terminal of one battery to the positive terminal of the next, and the negative terminal of one battery to the negative terminal of the next.
- Monitor the System: Keep an eye on your system's performance and make adjustments as needed.
Best Practices for Wiring Batteries in Parallel
While wiring batteries in parallel is a relatively simple process, there are some best practices to keep in mind:
- Use a Balancing System: A balancing system can help ensure that all batteries in the system are charged and discharged evenly, which can help extend their lifespan.
- Monitor Battery State of Charge: Keep an eye on the state of charge of each battery to ensure that they are all charged and discharged evenly.
- Use a Fuses or Breakers: Use fuses or breakers to protect your system from overcurrent and short circuits.
- Regularly Inspect the System: Regularly inspect your system to ensure that it is functioning properly and make adjustments as needed.
Common Questions and Answers
Here are some common questions and answers about wiring batteries in parallel:
- Q: What is the maximum number of batteries that can be wired in parallel?
A: There is no maximum number of batteries that can be wired in parallel, but it's generally recommended to limit the number to 8-12 batteries to ensure that the system is balanced and stable. - Q: How do I choose the right batteries for my system?
A: When choosing batteries for your system, look for batteries that are compatible with each other and with your power system. Consider factors such as voltage, current, and capacity. - Q: What is the difference between series and parallel wiring?
A: Series wiring involves connecting batteries together in a single line, while parallel wiring involves connecting batteries together in a network.
Conclusion
Wiring batteries in parallel is a simple yet effective solution for increasing the overall capacity and reliability of your power system. By following the best practices outlined in this guide, you can create a stable and efficient power system that meets your needs. Whether you're building a renewable energy system, a backup power system, or an electric vehicle, wiring batteries in parallel is a technique that can help you achieve your goals.
Final Tips
- Consult a Professional: If you're new to battery wiring, it's a good idea to consult a professional to ensure that your system is designed and installed correctly.
- Regularly Maintain Your System: Regularly inspect and maintain your system to ensure that it's functioning properly and make adjustments as needed.
- Consider a Balancing System: Consider using a balancing system to ensure that all batteries in the system are charged and discharged evenly.
I hope this comprehensive guide has helped you understand the basics of wiring batteries in parallel. Whether you're a seasoned pro or a beginner, this guide has provided you with the information and resources you need to create a stable and efficient power system.
