Generator Manual Transfer Switch: Your Essential Guide To Safe Power Backup

Have you ever been caught in a power outage, fumbling in the dark for flashlights and worrying about food spoiling in the freezer? For many homeowners and business owners, a portable generator is the go-to solution. But how do you safely and effectively connect that generator to your building's electrical system? This is where the humble yet critical generator manual transfer switch comes into play. It’s not just a piece of hardware; it’s the essential bridge that prevents dangerous back-feeding, protects your utility workers, and ensures your most important circuits stay powered when the grid fails. This comprehensive guide will walk you through everything you need to know, from understanding its core function to selecting, installing, and maintaining this vital component of your backup power plan.

What Exactly is a Generator Manual Transfer Switch?

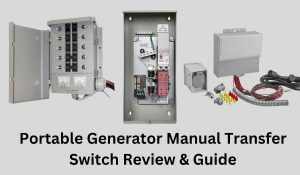

A manual transfer switch (MTS) is an electrical device that safely disconnects your home or building from the utility power grid and connects it to a portable generator. Its primary, non-negotiable function is to physically isolate the two power sources. This isolation is crucial because if both are connected simultaneously—a phenomenon called "back-feeding"—electricity can flow from your generator back into the utility lines. This poses a lethal shock hazard to utility workers repairing the downed lines and can also severely damage your generator and home appliances when grid power is restored.

Think of it as a highly specialized, lockable light switch for your entire electrical system. Instead of flipping a single switch for a light, you operate a single lever or handle that breaks the connection to the utility and makes a clean connection to your generator's power inlet. This process is "manual" because you, the user, must physically throw the switch. It is distinct from an automatic transfer switch (ATS), which senses a power loss and switches to generator power automatically, typically used with standby generators.

• Jessica Tarlov Fired
• Rihanna Leaks
• Amber Hilberling
• Wallace Shawn

The Critical Importance of Isolation and Safety

The safety role of the manual transfer switch cannot be overstated. According to industry reports, improper generator connection is a leading cause of electrocution and fire during power outages. The switch ensures a "break-before-make" operation, meaning it completely severs the utility connection before engaging the generator circuit. This design is mandated by the National Electrical Code (NEC) in the United States and similar regulations worldwide for any permanent generator connection. Using a manual transfer switch is not a recommendation; it is the only legal and safe method to connect a portable generator to a building's hardwired circuits. It protects your investment in appliances and, most importantly, human life.

How Does a Manual Transfer Switch Work? A Step-by-Step Breakdown

The operation of a manual transfer switch is straightforward but relies on precise engineering. Understanding this process is key to safe usage.

1. Normal Operation (Utility Power): When grid power is present, the switch's main contacts are connected to the utility feed. The generator circuit is physically and electrically isolated. Your home or facility runs entirely on utility power.
2. Power Outage Occurs: The grid fails. You must first turn off all major appliances and lights to prevent an overwhelming load when the generator starts.
3. Start the Generator: You go outside, start your portable generator, and let it warm up for a minute or two.
4. Connect the Generator: You plug the generator's power cord into a weatherproof generator inlet receptacle (often called a "gen cord") that is hardwired to the transfer switch.
5. Throw the Switch: This is the critical manual step. You move the single transfer switch lever from the "LINE" (utility) position to the "GEN" (generator) position. Inside the switch, a mechanical interlock ensures the utility contacts open fully before the generator contacts close, guaranteeing no cross-connection.
6. Power Selected Circuits: The switch now directs generator power only to the specific circuits (breakers) you have pre-selected and wired to it. These are typically your essential loads: refrigerator, freezer, sump pump, well pump, lights in key areas, and maybe a furnace fan or internet router.
7. Restoration of Utility Power: When the grid comes back on, you reverse the process. First, throw the switch back to "LINE." Then, unplug the generator cord. Finally, restart your normal electrical appliances. This sequence prevents a sudden surge from the utility from hitting your generator.

Key Components Inside the Switch

• Main Contacts: The heavy-duty electrical switches that carry the full current.
• Mechanical Interlock: The safety mechanism that enforces the break-before-make sequence.
• Circuit Breakers/Position: The individual switches or slots on the switch panel that correspond to your chosen branch circuits.
• Utility/GEN Position Indicators: Clear labels showing the current power source.
• Enclosure: A sturdy, often UL-listed metal box that houses all components.

Types of Manual Transfer Switches: Choosing the Right One

Not all manual transfer switches are created equal. Selecting the correct type depends on your electrical service, the generator you own or plan to buy, and your specific power needs.

• Secrettherapy Onlyfans
• Onlytatum Of Leak
• Liz Vassey
• Russell Salvatore Net Worth

1. Service Entrance (Whole House) Switches

These are the largest and most robust switches. They are installed immediately after your main utility meter and before your main breaker panel. They can handle the full amperage of your service (often 100A, 200A, or 400A). When activated, they power every circuit in your main panel from the generator. This is ideal for large homes or small businesses where you need maximum flexibility and don't want to pre-select circuits. However, it requires a generator with sufficient wattage to handle the total load of your entire home, which is often prohibitively expensive.

2. Main Breaker (Panel) Switches

This is the most common type for residential use. It is a sub-panel or "generator ready" panel that replaces or is installed alongside your existing main breaker panel. It contains a main switch and a set of individual circuit breakers (e.g., 6, 8, 10, or 12 spaces). You move selected essential circuit breakers from your old main panel to this new transfer switch panel. The switch then powers only these selected circuits. This is a highly efficient and cost-effective solution, as it allows you to use a smaller, more affordable generator by managing your load carefully.

3. Load Center (Sub-Panel) Switches

Similar to main breaker switches, these are designed to be installed as a sub-panel fed from your existing main panel. The transfer switch is the main breaker in this sub-panel. You run new circuits from your main panel to this sub-panel for your essential loads. This is a good option for adding generator capability to an existing panel without replacing it.

4. Individual Circuit (Relay) Switches

These are smaller, simpler switches designed to control one or two dedicated circuits (e.g., a furnace, sump pump, or well pump). They are hardwired directly to that specific appliance circuit. They are less common for general home backup but useful for isolating a single critical load. They are often used in conjunction with a larger panel switch for specific high-draw appliances.

Comparison Table: Manual Transfer Switch Types

The Installation Process: Why Professional Help is Non-Negotiable

While the concept of flipping a switch is simple, installation is not a DIY project for the unlicensed. It involves working with your service entrance, which carries lethal voltages (120/240V). Improper installation risks fire, electrocution, code violations, and voided insurance.

The Professional Installation Steps

1. Load Calculation & Planning: An electrician performs a manual J load calculation (for HVAC) and a general load analysis to determine which circuits are essential and their total wattage demand. This dictates the switch size (amperage) and generator capacity needed.
2. Permitting: The electrician pulls the required electrical permit from your local building department. This ensures the work will be inspected and meets code.
3. Shut-off & Safety: The utility company is notified. The electrician locks out/tags out the main service disconnect to ensure zero voltage during work.
4. Wiring: The electrician runs appropriate gauge wire (e.g., 6 AWG for 50A) from the generator inlet receptacle (mounted outside) to the transfer switch location. They then connect the switch's "LINE" terminals to the main lugs of your panel (or service entrance) and the "GEN" terminals to the selected branch circuit breakers or a new sub-panel.
5. Grounding & Bonding: A proper grounding electrode system and bonding are installed per NEC Article 250. This is critical for safety.
6. Labeling: Every circuit connected to the switch is clearly labeled on both the transfer switch and the main panel with instructions like "ESSENTIAL LOADS – POWERED BY GENERATOR."
7. Inspection: The work is inspected by a city/county inspector to verify code compliance before the utility re-energizes the service.

Actionable Tip: When planning, create a "load priority list." Rank your circuits by necessity. Practice load management by turning off non-essentials (electric water heater, dryer, oven) when running on generator power to avoid overloading.

Safety Protocols and Best Practices: Beyond the Switch

The switch is your safety cornerstone, but safe operation involves a system of best practices.

• Never Operate in Enclosed Spaces: Always run a portable generator ** outdoors**, at least 20 feet away from windows, doors, and vents. Carbon monoxide (CO) poisoning is a silent, fast-acting killer.
• Use Proper Cords: Use only heavy-duty, outdoor-rated generator cords (e.g., 10/3 or 12/3 gauge with 4-prong NEMA L14-30 or L5-30 plugs) that match your generator's outlet and the inlet receptacle. Do not use indoor extension cords.
• Follow the Sequence Religiously:Generator ON → Switch to GEN → Add Loads. And in reverse: Remove Loads → Switch to LINE → Generator OFF. Never switch with the generator running under load.
• Regular Testing:Test your system monthly. Start the generator, perform the transfer, and verify power on your essential circuits. Listen for unusual noises, check for warm connections, and confirm all labeled circuits are energized. This ensures it works when you need it most.
• Keep it Clean & Accessible: Maintain a clear 3-foot workspace around the switch and inlet. Keep vegetation and storage items away.

Cost Considerations: Budgeting for Safety

The cost of a manual transfer switch system is an investment in safety and resilience.

• Switch Unit Cost: A basic 30-50 amp, 6-10 circuit panel-style switch ranges from $250 to $700. Whole-house service entrance switches can cost $1,000 to $3,000+.
• Installation Labor: This is the significant variable. A straightforward retrofit in an accessible location might take 4-6 hours ($400-$800). Complex installations involving new wiring, sub-panels, or difficult access can take a full day or more ($800-$1,500+).
• Generator Inlet Receptacle: Adds $50-$150 for the hardware.
• Permits & Inspection: Typically $50-$200.
• Total Project Range: For a typical home with a 30-50A switch and pre-selected circuits, expect a total installed cost between $1,000 and $2,500. Remember, this is a permanent, code-compliant installation that adds value to your home.

Maintenance and Troubleshooting: Ensuring Long-Term Reliability

A manual transfer switch is a "set it and forget it" component, but it still requires minimal, periodic attention.

• Visual Inspection (Quarterly): Look for signs of wear, corrosion, rust, or insect/rodent damage on the switch and inlet. Ensure the cover is secure.
• Mechanical Operation Test (Semi-Annually): With utility power ON and the generator OFF, manually flip the switch lever from LINE to GEN and back several times. It should move smoothly without excessive force or grinding. This exercises the contacts and interlock.
• Connection Check (Annually): During your generator service, have a technician check the torque on the terminal screws inside the switch (if accessible). Loose connections cause heat and arcing.
• Common Issues & Fixes:
  • Switch is Stiff or Won't Move: Do not force it. Contact an electrician. The internal interlock may be jammed or corroded.
  • No Power After Switching: Check generator output voltage. Check if the circuit breaker on the generator itself tripped. Check the corresponding breaker in the transfer switch panel.
  • Buzzing/Arcing Sound: This indicates a loose connection or worn contacts. Power down immediately and call an electrician. This is a fire hazard.
  • Inlet Receptacle is Warm: A sign of a loose or corroded connection. Requires immediate service.

Frequently Asked Questions (FAQs)

Q: Can I install a manual transfer switch myself if I'm handy?
A: No. In virtually all jurisdictions, this work requires a licensed electrician. It involves working on the service entrance, which is high-voltage and subject to strict code. DIY installation is illegal, dangerous, and will void insurance.

Q: What size (amp) transfer switch do I need?
A: The size is determined by the total wattage/amperage of your selected essential circuits. A typical home might need a 30A or 50A switch. An electrician's load calculation is essential. Don't guess; over-sizing leads to unnecessary cost, under-sizing leads to tripping.

Q: Do I need a 4-prong generator cord and inlet?
A: For modern 120/240V generators and panels, yes. A 4-prong (NEMA L14-30) carries two hot legs (120V each), a neutral, and a ground, which is required for most newer panels and appliances with 240V components (like well pumps). Older 3-prong systems are outdated and less safe.

Q: How many circuits can I back up?
A: It depends on your switch (e.g., a 10-space panel) and your generator's capacity. You can back up as many circuits as the switch has spaces and as your generator's wattage can handle simultaneously. A 5,500-watt generator might only power 5-7 circuits (refrigerator, freezer, sump, furnace fan, some lights). A 7,500-watt generator can handle more.

Q: What's the difference between a transfer switch and an interlock kit?
A: An interlock kit is a cheaper, often less-regulated device that attaches to your existing main panel to prevent the main breaker and a generator backfeed breaker from being on at the same time. While NEC-compliant kits exist, they are more prone to user error (forgetting to throw the correct breakers) and are generally considered less robust and user-friendly than a dedicated transfer switch. The switch is the gold standard for safety and clarity.

Conclusion: Your Peace of Mind is in the Switch

A generator manual transfer switch is far more than a simple connector; it is the indispensable heart of a safe, legal, and effective portable generator backup system. It transforms a potentially chaotic and hazardous situation into a controlled, reliable process. By understanding its function, choosing the right type for your needs, ensuring professional installation, and committing to regular safety checks and testing, you empower yourself to face power outages with confidence. You protect your home, your valuable appliances, and—most critically—the lives of your family and the utility workers restoring power to your neighborhood. Investing in a properly installed manual transfer switch isn't just about keeping the lights on; it's a fundamental responsibility of any generator owner, providing not just convenience, but true peace of mind when the grid goes down.
