Master Your Build: The Ultimate LVL Beam Span Calculator Guide
Have you ever stared at a set of building plans, wondering if that LVL beam you've spec'd is truly up to the task? How do you know if your chosen beam will safely support the load without excessive sag or, worse, failure? This is the critical question at the heart of every structural framing decision, and the answer lies in understanding and correctly using an LVL beam span calculator. For DIY enthusiasts, contractors, and architects alike, this tool transforms guesswork into precise engineering, ensuring your structure is both safe and code-compliant. Navigating the complexities of load types, beam depths, and species ratings can be daunting, but with the right knowledge, you can master this essential step in your building process.
This comprehensive guide will demystify everything about LVL beam span calculations. We'll move from fundamental concepts to practical application, exploring the factors that influence span capacity, how to interpret calculator results, and why professional validation is non-negotiable for structural elements. Whether you're designing a new home, adding a second story, or building a substantial deck, understanding the science behind the span is your first defense against costly rework and potential hazards.

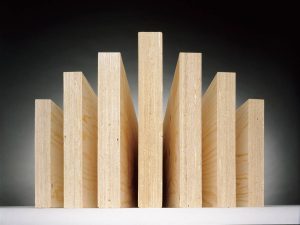

Understanding the Foundation: What is an LVL Beam?
Before diving into calculators, we must understand the product they're designed for. LVL, or Laminated Veneer Lumber, is an engineered wood product that has revolutionized modern construction. Unlike traditional solid-sawn lumber, which is cut directly from a log and contains natural defects like knots and grain irregularities, LVL is manufactured. Thin wood veneers, typically from fast-growing pine or fir, are layered together with adhesives under high heat and pressure. The grain of all veneers runs parallel to the length of the beam.
This manufacturing process creates a product with remarkable uniformity and strength. The layers are oriented so that the natural weaknesses in wood are distributed and compensated for by adjacent layers. The result is a beam that is significantly stronger, straighter, and more predictable than most solid wood beams of comparable size. LVL beams are commonly used for long spans in floor joists, roof rafters, headers over doors and windows, and main support beams in floors and ceilings. Their consistent performance makes them a favorite for applications where dimensional stability and high load capacity are paramount.
The key specifications you'll encounter for any LVL beam are its depth (height), width (thickness), length, and its allowable bending stress (Fb) and modulus of elasticity (E) values. These values, provided by the manufacturer (like Weyerhaeuser, LP, or Boise Cascade), are the raw data that span calculators use. A deeper beam (e.g., 11-7/8" vs. 9-1/2") is exponentially stronger, often allowing for longer spans or heavier loads. This is why simply knowing "it's an LVL" isn't enough; you must know the exact product and its grade.
Why a Dedicated LVL Beam Span Calculator is Non-Negotiable
You might wonder, "Can't I just use a generic span table?" While basic span tables exist, they are often limited to standard loads, species, and deflection criteria. A dedicated LVL beam span calculator is essential because it accounts for the precise, variable conditions of your unique project. Generic tables are a starting point, but real-world construction is nuanced. A calculator allows you to input the exact parameters of your situation, providing a tailored and accurate result.
Consider the variables: Live loads (people, furniture) differ for a residential bedroom (30 psf) versus a storage room (40 psf or more). Dead loads (the weight of the structure itself—drywall, flooring, roofing) vary dramatically between a lightweight roof and a heavy tile floor with a concrete underlayment. Deflection limits—how much a beam is allowed to bend under load—change based on the application. A floor with tile requires a stricter deflection limit (often L/360) than a ceiling with only drywall (L/240), because excessive bounce can crack brittle materials.
Furthermore, beam orientation matters. An LVL beam can be installed "plumb" (depth vertical) or "flat" (depth horizontal). Its strength is vastly different in these two orientations. A calculator that doesn't account for this will give dangerously incorrect results. The same 1-3/4" x 11-7/8" beam has a much higher moment capacity when installed on its narrow edge (plumb) versus its wide face (flat). Only a sophisticated calculator, using the manufacturer's published section properties, can accurately model this.
Finally, building codes evolve. The International Residential Code (IRC) and local amendments update load requirements and design standards. A reputable online calculator or software is typically updated to reflect current code editions, whereas a printed table from five years ago may be obsolete. Using an outdated guide can lead to under-engineered, unsafe construction. Therefore, the calculator isn't just a convenience; it's a critical tool for compliance and safety.
Decoding the Inputs: What Information Do You Need?
To get a meaningful output from any LVL beam span calculator, you must gather precise data. Garbage in, garbage out applies profoundly to structural engineering. Rushing or guessing on these inputs compromises the entire calculation. Here is a breakdown of the essential information you need to collect:
- Beam Size & Species: This is your starting point. You need the exact nominal and actual dimensions (e.g., 1-3/4" x 9-1/2", 1-3/4" x 11-7/8", 3-1/2" x 11-7/8") and the specific LVL product name or its allowable bending stress (Fb) and modulus of elasticity (E) values. These are found on the manufacturer's technical data sheet. Do not assume all "LVL" is created equal.
- Total Span: Measure the clear, horizontal distance between the supports (e.g., between walls or posts). This is the clear span. You must also note if the beam is simply supported (pinned at both ends) or continuous (extending over multiple supports), as continuity dramatically increases capacity.
- Load Type & Magnitude: You must define the uniformly distributed load (UDL) the beam will carry. This is typically in pounds per square foot (psf). You need to calculate or look up:
- Dead Load (D): Weight of permanent materials (roofing, sheathing, flooring, drywall). For a typical residential floor, this might be 10-15 psf. For a roof with asphalt shingles and plywood, it might be 10-12 psf.
- Live Load (L): Weight of transient occupants and furniture. The IRC prescribes 40 psf for residential floors and 30 psf for roofs, but specific areas like decks or storage rooms have different requirements.
- Total Load (W) is usually D + L. Some calculators allow you to input these separately for a more accurate analysis.
- Deflection Limit: This is the maximum allowable vertical bend (sag) under load, expressed as a ratio of the span (e.g., L/360, L/240, L/180). A lower number (L/360) means less allowed sag. For floors supporting tile, L/360 is standard. For roofs supporting only flexible materials, L/240 may be acceptable.
- Beam Orientation: Specify if the beam is installed on edge (plumb) or flat (horizontal). This affects its section modulus and moment of inertia.
- Support Conditions: Are the supports rigid (like concrete walls) or flexible (like wood stud walls)? This influences the beam's end fixity.
Gathering this information requires a bit of homework—reviewing your architectural plans, consulting local building codes, and obtaining the technical sheet for your chosen LVL product. It's a small investment that prevents monumental errors.
Step-by-Step: Using an LVL Beam Span Calculator Effectively
With your data in hand, using a calculator is straightforward, but the process demands attention. Let's walk through a typical workflow using a reputable engineering calculator or software.
- Select Your LVL Product: The first dropdown menu will usually ask for the manufacturer and product series (e.g., "Weyerhaeuser TimberStrand® LVL," "LP® SolidStart® LVL"). This auto-populates the critical Fb and E values and the available standard depths. If your specific product isn't listed, you may need to enter these values manually from the technical data sheet.
- Enter Span and Support Details: Input the clear span in feet and inches. Select the support type (e.g., "simple" for pinned ends, "continuous" for multi-span). If continuous, you'll need to specify the length of the overhangs.
- Define the Loading: Input the total uniform load in pounds per linear foot (plf). If your calculator separates dead and live loads, enter both. To convert from psf to plf:
(psf) x (beam spacing on center in feet) = plf. For example, a 40 psf floor load with joists spaced 16" (1.333 ft) o.c. results in a load of 40 x 1.333 = 53.3 plf on the supporting beam. - Set Deflection Criteria: Choose the appropriate L/___ ratio based on your application (L/360 for floors with tile, L/240 for typical floors/roofs).
- Specify Orientation: Select "on edge" or "flat". This is crucial.
- Run the Calculation: Click "Calculate" or "Solve." The software will analyze the beam's bending stress (Fb) and shear stress (Fv) against the allowable values, and check the deflection.
- Interpret the Results: A successful calculation will show:
- "Pass" or a green indicator.
- The maximum allowable span for your chosen beam size under those loads.
- The actual bending stress utilization (e.g., 85% of Fb) and shear stress utilization (e.g., 42% of Fb). These percentages should be below 100%.
- The deflection at the given span (e.g., 0.42" for a 20' span), which must be less than the limit (e.g., for L/360 on a 20' span, max deflection = 240"/360 = 0.67").
- If the beam fails, the calculator will indicate whether it failed due to bending (Fb), shear (Fv), or deflection. This tells you how to modify your design: increase beam depth (fixes bending/deflection) or width (fixes shear), reduce the span, or reduce the load.
Practical Example: You need to support a 20-foot clear span for a first-floor beam with 16" o.c. joists. Floor dead load = 12 psf, live load = 40 psf. Total load = 52 psf. Beam load = 52 psf x (16"/12 = 1.333 ft) = 69.3 plf. You plan to use a 1-3/4" x 11-7/8" LVL (on edge) with an Fb of 2,200 psi and E of 2,000,000 psi. Deflection limit L/360.
- Input: Product specs, 20' span, simple support, 69.3 plf, L/360, on edge.
- Result: Bending stress = 1,850 psi (84% of 2,200) → PASS. Shear = 150 psi (well under typical 275 psi) → PASS. Deflection = 0.35" (less than 20'x12"/360=0.67") → PASS. Your selected beam is adequate.
The Critical Factors That Influence Span Capacity
Beyond the basic inputs, several interconnected factors dramatically affect how far an LVL beam can safely span. Understanding these helps you troubleshoot calculator results and make informed design choices.
1. Load Magnitude and Type: This is the most obvious factor. Doubling the load does not just halve the safe span; due to the cubic relationship in beam formulas, it reduces the span capacity much more significantly. A beam designed for a 40 psf live load floor will span far less than the same beam used for a 30 psf roof load. Remember to include all permanent dead loads accurately. The weight of a heavy tile floor or a concrete topping can add 10-20 psf or more to your dead load calculation.
2. Beam Depth (Height): Strength is proportional to the square of the depth for bending. A 12" deep beam is not just a little stronger than a 10" deep beam; it's (12/10)² = 1.44 times, or 44% stronger in bending capacity. This is why increasing depth is the most efficient way to gain span length. Deflection is inversely proportional to the cube of the depth, making depth even more critical for controlling bounce.
3. Beam Width (Thickness): Strength is directly proportional to width. Doubling the width (e.g., from single 1-3/4" to double 3-1/2") doubles the bending and shear capacity. However, it does not improve stiffness (deflection) as much as increasing depth does. Width is often increased to address shear failures, which are common in shorter, heavily loaded beams.
4. Species and Grade (Fb & E): The allowable bending stress (Fb) and modulus of elasticity (E) are the fundamental material properties. A higher Fb means the wood fibers can withstand more stress before yielding. A higher E means the beam is stiffer and will deflect less under the same load. Always use the values for the specific LVL product and grade you are purchasing. Premium grades will have higher values and thus longer allowable spans.
5. Support Conditions: A simply supported beam (pinned at both ends) is the most common scenario. A continuous beam (spanning over three or more supports) is significantly stronger because the negative moments over intermediate supports help counteract the positive midspan moments. A calculator must be set to "continuous" to realize this benefit. The rigidity of the support itself (a concrete wall vs. a wood stud wall) can also affect the effective fixity.
6. Deflection Limits: As mentioned, the allowed L/___ ratio is a project-specific choice. Choosing a stricter limit (L/360 instead of L/240) will reduce the allowable span for the same beam because it limits how much the beam can bend. You cannot compromise on this for finish integrity.
Common Pitfalls and How to Avoid Them
Even with a calculator, errors occur. Here are the most frequent mistakes and how to sidestep them.
Mistake 1: Using the Wrong Load Values. The biggest error is underestimating dead load. Contractors might forget the weight of the subfloor, underlayment, or ceiling below. Solution: Use conservative, code-minimum values from your local building department. When in doubt, overestimate the load. It's cheaper to oversize a beam than to fix a failed one.
Mistake 2: Ignoring Beam Orientation. Selecting "flat" when the beam will be installed "on edge" (or vice versa) can lead to a span calculation that is off by 100% or more. Solution: This setting is usually a clear radio button. Double-check it against your installation plan. Remember: on edge = stronger.
Mistake 3: Not Accounting for Point Loads. Many calculators assume a uniform load. If your beam supports a point load—like a post from a beam above, a heavy column, or a concentrated equipment load—you must either use a calculator that handles point loads or convert it to an equivalent uniform load (which is complex and inaccurate). Solution: For beams with significant point loads, use advanced software or consult a licensed engineer. This is a red flag for DIY.
Mistake 4: Forgetting about Notches and Holes. Drilling large holes or notching LVL beams for plumbing, wiring, or HVAC severely compromises their strength. Most standard span calculations assume an uncut, solid beam. Solution: If you must cut, consult the manufacturer's notching and hole-drilling guidelines (they have strict limits on location and size). You will likely need to reduce the calculated span or increase the beam size to compensate.
Mistake 5: Blind Trust in Online Calculators. Not all calculators are created equal. Some are simplistic, outdated, or use incorrect assumptions. Solution: Use calculators from reputable engineering software companies (like those from the American Wood Council - awc.org) or directly from major LVL manufacturers (Weyerhaeuser, LP, etc.). These are based on the National Design Specification (NDS) for Wood Construction and are updated with code cycles.
When to Call a Professional: The Limits of DIY Calculation
An LVL beam span calculator is a powerful design tool, but it is not a substitute for a licensed structural engineer's seal. There is a clear line between using a calculator for preliminary sizing and relying on it for final, buildable documents.
You should always hire a professional engineer if:
- Your span is very long (typically over 30 feet).
- Loads are unusual or heavy (e.g., hot tubs, large water tanks, masonry veneer).
- The beam is a primary structural member in a complex system (e.g., a main girder in a multi-story house).
- Your local building department requires engineered drawings (which is common for anything beyond standard framing).
- You are unsure about any input parameter.
- The project involves significant point loads, dynamic loads, or seismic/wind considerations beyond basic gravity loads.
A professional engineer will use advanced software that performs a full structural analysis, considers all load combinations (dead, live, wind, seismic), checks for lateral-torsional buckling, and provides sealed drawings for permit submission. Their expertise catches the subtle issues a DIY calculator cannot. Think of the online calculator as your pre-design research tool to understand sizing concepts and have an informed discussion with your builder or engineer. The final, legal design must come from a licensed professional.
The Future of Beam Design: Software and Integration
The industry is moving beyond simple standalone calculators. Integrated Building Information Modeling (BIM) software like Revit, coupled with structural analysis plugins (like Autodesk Robot Structural Analysis or RAM Structural System), is changing the game. In this workflow, the LVL beam is modeled as a 3D element within the entire building model. Loads are automatically generated from the model's geometry (floor areas, roof pitches). The software runs complex finite element analysis and directly outputs member sizes, including LVL beams, that satisfy all code requirements.
This integration reduces errors from manual data entry and ensures the beam design is perfectly synchronized with the architectural model. For large projects, this is becoming the standard. For the professional contractor or designer, learning these tools is an investment in efficiency and accuracy. For the serious DIYer, understanding that this level of sophistication exists highlights the complexity of the problem and reinforces the need for professional oversight on critical elements.
Conclusion: Building Confidence Through Calculation
The journey from a simple question—"What size beam do I need?"—to a safe, code-compliant answer is paved with careful data gathering, precise tool use, and a healthy respect for structural principles. An LVL beam span calculator is your indispensable guide on this journey. It empowers you to engage with your project from a position of knowledge, to ask the right questions of suppliers and builders, and to understand the "why" behind the specifications on your plans.
Remember, the calculator's output is only as good as the inputs you provide. Take the time to source accurate load data, find your LVL product's true engineering values, and select the correct deflection criteria. Use reputable, code-based calculators and be acutely aware of their limitations, especially regarding point loads and complex geometries. When in doubt, the cost of a consultation with a structural engineer is infinitesimal compared to the cost of failure—in dollars, time, and, most importantly, safety.
By mastering this tool, you do more than just size a beam; you gain a fundamental insight into the invisible language of forces and materials that holds our built world together. Build with confidence, build with calculation, and always build with safety as your ultimate span.
