ESP32-C3 Super Mini Built-in LED Pin: Your Ultimate Guide To Blinking, Debugging, And Prototyping

Ever wondered how a single tiny LED can transform your IoT prototyping from a frustrating guesswork exercise into a smooth, intuitive process? For hobbyists, makers, and professional engineers alike, the humble built-in LED on a development board is often the first and most critical point of interaction. It’s your immediate visual feedback loop, your debugging companion, and your proof-of-concept indicator all rolled into one. Among the compact powerhouse boards in the ESP32 family, the ESP32-C3 Super Mini has gained immense popularity, and its integrated LED pin is a key feature that unlocks its potential. This guide will comprehensively explore everything you need to know about the ESP32-C3 Super Mini built-in LED pin, from its exact location and electrical characteristics to advanced programming techniques and project applications.

Whether you're just starting with microcontroller programming or you're a seasoned developer looking for a streamlined workflow, understanding this small but mighty component is essential. We'll move beyond the basic "blink" example to show you how to leverage this onboard LED for sophisticated debugging, ultra-low-power state indication, and even as a crude sensor. By the end of this article, you'll have a mastery of the ESP32-C3 Super Mini's LED that will save you hours of head-scratching and accelerate your project development.

What Exactly is the ESP32-C3 Super Mini?

Before we zero in on the LED, it's crucial to understand the board it's attached to. The ESP32-C3 Super Mini is a diminutive, yet powerful, development module based on the ESP32-C3 system-on-chip (SoC) from Espressif Systems. It represents a significant evolution in the ESP32 lineup, primarily due to its integration of a RISC-V core—a modern, open-source instruction set architecture—alongside the established Wi-Fi 4 and Bluetooth 5 (LE) connectivity.

• Liz Vassey
• Whitney Cerak
• Eden Mccoy
• Christopher Papakaliatis Partner

The Rise of the Compact ESP32 Variants

The market for small-form-factor IoT devices has exploded, demanding boards that are not only powerful but also incredibly space-efficient. The "Super Mini" form factor, popularized by boards like the ESP32-C3, answers this call. Measuring typically around 25mm x 18mm, it packs a punch far exceeding its size. Key specifications often include:

• Microcontroller: ESP32-C3 (Single-core 32-bit RISC-V CPU, up to 160 MHz)
• Connectivity: 2.4 GHz Wi-Fi 4 (802.11 b/g/n) and Bluetooth 5 (LE)
• Memory: 400 KB SRAM, 384 KB ROM, 4 MB external flash (common on Super Mini variants)
• GPIO: A generous number of programmable I/O pins for its size, often 11-13.
• Power: Wide input voltage range (3.3V - 5V) with onboard regulator.

This combination of RISC-V efficiency, robust wireless connectivity, and a tiny footprint makes the ESP32-C3 Super Mini a default choice for battery-powered wearables, compact sensors, and embedded devices where every square millimeter counts.

Why the Built-in LED is a Critical Feature

On such a small board with limited space for external components, having an LED pre-soldered and connected to a specific GPIO pin is a massive advantage. It eliminates the need for an external resistor and LED for the most basic function: visual feedback. This built-in LED serves multiple critical purposes:

• Gore Center Where The Living
• Bronwyn Newport Husband
• Christopher Papakaliatis
• Josh Bell Y Angela Aguilar

1. Power & Boot Indicator: It often lights up upon power application, confirming the board is receiving voltage and the chip has booted.
2. "Hello World" Validation: The classic blink sketch is the universal first test for any new board or development environment setup.
3. Runtime Debugging: You can toggle its state within your code to indicate specific program flow, error states, or connection status without needing a serial monitor.
4. Low-Power State Signaling: In battery-operated projects, a brief pulse from the LED pin can confirm the device has woken from deep sleep.

Understanding its exact behavior and how to control it is foundational to effective development with this board.

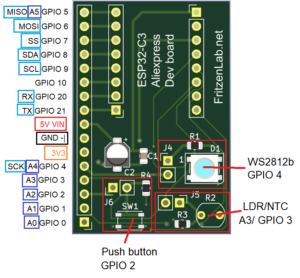

Pinout Deep Dive: Locating and Understanding the LED Pin

The most critical piece of information is: which GPIO pin is the built-in LED connected to? For the vast majority of ESP32-C3 Super Mini boards circulating in the market (from manufacturers like Ai-Thinker, LILYGO, and various generic suppliers), the answer is consistent.

The Definitive Answer: GPIO5

The built-in LED on the standard ESP32-C3 Super Mini is almost universally connected to GPIO5. This is a fixed hardware connection. You will find a small surface-mount LED (typically green or blue) soldered directly onto the board, with one leg connected to GPIO5 and the other leg connected to ground (GND) through a small current-limiting resistor (usually around 330-470 ohms).

Important Note: Always double-check the specific silkscreen labeling or datasheet for your exact board variant. While GPIO5 is the de facto standard, there are rare exceptions. The pin might be labeled "LED" or "BUILTIN_LED" on the board's silkscreen.

Electrical Characteristics of the Onboard LED Circuit

Understanding the circuit helps avoid damage and informs your code.

• Configuration: The circuit is a simple low-side drive. This means GPIO5 is used to sink current to ground. When GPIO5 is set to a LOW (0V) output, the circuit is completed (GPIO5 -> LED -> Resistor -> GND), and the LED lights up. When GPIO5 is set to HIGH (3.3V), the potential across the LED is zero, and it is off.
• Voltage & Current: The ESP32-C3's GPIO pins operate at 3.3V logic. The onboard resistor is sized for safe operation at this voltage, typically limiting current to around 5-10mA. You should NOT attempt to drive this LED directly from a 5V pin or without the existing resistor.
• Implication for Code: Because the LED is active-low, your code logic is inverted from what you might expect. To turn the LED ON, you write a LOW value to GPIO5. To turn it OFF, you write a HIGH.

This active-low configuration is a common convention in many microcontroller boards (like the Arduino Uno's LED on pin 13) and is crucial to remember to avoid confusion during debugging.

Programming the Built-in LED: From "Blink" to Advanced Control

Now for the fun part—making it do your bidding. We'll cover the two dominant frameworks for ESP32 development: Arduino IDE and MicroPython.

The Classic "Blink" Example in Arduino IDE

This is your sanity check that the toolchain is working.

// ESP32-C3 Super Mini Built-in LED Blink - Arduino IDE const int ledPin = 5; // GPIO5 void setup() { pinMode(ledPin, OUTPUT); // Set GPIO5 as an output } void loop() { digitalWrite(ledPin, LOW); // Turn LED ON (sink LOW) delay(1000); // Wait 1 second digitalWrite(ledPin, HIGH); // Turn LED OFF (set HIGH) delay(1000); // Wait 1 second }

Why this works:digitalWrite(LOW) connects the pin to ground, completing the circuit. digitalWrite(HIGH) disconnects it from ground (pulls it up to 3.3V internally), breaking the circuit.

MicroPython: A More Pythonic Approach

If you prefer Python, the ESP32-C3 Super Mini runs MicroPython beautifully.

# ESP32-C3 Super Mini Built-in LED Blink - MicroPython # LED is on GPIO5, active-low from machine import Pin import time led = Pin(5, Pin.OUT) # Configure GPIO5 as output while True: led.value(0) # 0 = LOW = LED ON time.sleep(1) led.value(1) # 1 = HIGH = LED OFF time.sleep(1)

MicroPython's Pin.value(0/1) is very intuitive once you remember the active-low mapping.

Beyond Blink: PWM for Dimming and Fading

The LED pin isn't just for on/off. Since GPIO5 is a hardware PWM (Pulse Width Modulation) capable pin, you can control its brightness.
Arduino Example (Fading):

const int ledPin = 5; int brightness = 0; int fadeAmount = 5; void setup() { pinMode(ledPin, OUTPUT); ledcSetup(0, 5000, 8); // 8-bit resolution (0-255) ledcAttachPin(ledPin, 0); } void loop() { ledcWrite(0, brightness); // Write PWM value (0=off, 255=full on) brightness += fadeAmount; if (brightness <= 0 || brightness >= 255) { fadeAmount = -fadeAmount; } delay(30); }

Key Insight: For PWM dimming on an active-low LED, a ledcWrite(0) value is OFF, and ledcWrite(255) is FULLY ON. This is because the PWM signal is inverting the average voltage seen by the LED.

The Built-in LED as Your Most Powerful Debugging Tool

This is where the ESP32-C3 Super Mini built-in LED transitions from a novelty to an indispensable engineering tool. When your serial monitor is busy or you're dealing with a system crash early in boot, the LED is your only window into the code's execution.

State Indicator Patterns

You can create simple blink patterns to represent different system states:

• Slow Blink (2s ON, 2s OFF): "System is in normal operational mode, connected to Wi-Fi."
• Fast Double Blink (200ms ON, 200ms OFF, 200ms ON, 1.5s OFF): "Wi-Fi connection failed, retrying..."
• Rapid Triple Blink (100ms each, 1s pause): "Critical error! Sensor read failed."
• Solid ON: "Firmware update in progress" or "Deep sleep mode active."

Implementation Tip: Create a global enum or set of #define constants for your states and a single function indicateState(StateCode) that handles the blinking pattern. Call this function from anywhere in your code to provide immediate visual context.

Heartbeat for Watchdog Timers

A classic pattern is to have the LED pulse briefly once every few seconds from the main loop. If your code hangs or gets stuck in a blocking function, this heartbeat stops. It's a simple, hardware-level watchdog indicator that tells you the main loop is alive.

Bootloader & Flash Mode Indicator

The ESP32-C3 uses specific GPIO states during power-on to enter flashing mode. While the built-in LED's behavior during this phase is board-specific, observing its activity (or lack thereof) when pressing the boot button can help diagnose if the board is correctly entering the ROM serial bootloader mode for firmware uploads.

Power Consumption Implications: The Hidden Cost of Blinking

For battery-powered IoT projects using the ESP32-C3 Super Mini, every milliamp-hour (mAh) counts. The built-in LED is not free.

Measuring the Impact

• LED On: The green LED, with its series resistor, typically draws between 2-5 mA at 3.3V.
• ESP32-C3 Active: The chip itself in active Wi-Fi transmission mode can draw 80-200 mA.
• Deep Sleep: In deep sleep mode, the ESP32-C3 can consume as little as ~5-10 µA.

The math is clear: Leaving the LED on continuously in a deep-sleep application could consume more power than the microcontroller itself in that state! For a project meant to last months or years on a coin cell, this is catastrophic.

Best Practices for Low-Power Projects

1. Turn it OFF in Sleep: Explicitly set the LED pin (GPIO5) to a high-impedance state (INPUT) or HIGH output before entering deep sleep. pinMode(5, INPUT); is often the lowest power state.
2. Use it Sparingly: Only pulse the LED for critical user notifications or very brief status indications upon wake-up.
3. Consider Disabling (Advanced): If your project is ultra-low-power and you never need the LED, you could physically desolder it or carefully cut the trace on the board (not recommended for beginners).

Advanced Projects: Leveraging the LED Pin Creatively

Move over, simple blink. Here’s how to get creative with your ESP32-C3 Super Mini's built-in LED.

1. The Light Sensor (Reverse Bias)

In a pinch, you can use the LED as a crude ambient light sensor. An LED is a photodiode when reverse-biased. By setting GPIO5 as an input and measuring the time it takes for the pin to go high when weakly pulled up (using the internal pull-up resistor), you can get a rough estimate of light intensity. This is a fun experiment but not for precision applications.

2. Morse Code Beacon

Program the board to transmit your name or a distress signal in Morse code using the LED. This is excellent for learning timing control and can be a visible communication method for short-range, line-of-sight scenarios.

3. Binary Clock or Status Display

Combine the built-in LED with an external LED bar graph or another single-color LED on a different GPIO. Use a simple pattern to display system status (e.g., battery level, signal strength) as a binary number. The built-in LED can serve as the "least significant bit" or a power indicator.

4. Visual Feedback for Wireless Events

Make the LED flash uniquely for different wireless events:

• Single long flash: Wi-Fi connected.
• Two short flashes: MQTT message published.
• Three short flashes: OTA (Over-The-Air) update complete.
  This provides immediate, tangible feedback in a crowded workshop or field deployment.

Troubleshooting Common LED Issues on the ESP32-C3 Super Mini

Even with a simple component, things can go wrong. Here’s your diagnostic checklist.

"My LED won't blink at all!"

1. Check Your Pin Number: Are you absolutely sure you're using 5 for GPIO5? A common mistake is using the physical pin number (e.g., "pin 8" on the board) instead of the GPIO number.
2. Verify Board Selection: In Arduino IDE, ensure you've selected the correct board ("ESP32-C3 Dev Module" or a specific "ESP32-C3 Super Mini" definition if available). Incorrect board settings can map pins wrong.
3. Inspect the Hardware: Look closely at the LED. Is it physically damaged? Is there a poor solder joint on the tiny LED or resistor? Use a magnifier.
4. Test the Pin: Write a simple sketch that sets GPIO5 as an output and drives it HIGH and LOW with a long delay (2 seconds). If the LED never lights, the pin or its connection might be damaged. Try a different GPIO pin with an external LED to test if the chip's GPIO is functional.

"The LED is always dimly lit!"

This is a classic floating pin issue.

• Cause: The GPIO5 is not configured as an output and is left in a high-impedance input state, picking up stray capacitance or leakage current.
• Fix: Ensure pinMode(ledPin, OUTPUT); is called in the setup() function before any digitalWrite() commands. The output driver actively pulls the pin high or low, eliminating the floating state.

"The LED is very dim or flickering."

• Power Supply: Are you powering the board via USB and a long, thin cable? Voltage drop can reduce LED brightness. Try a different USB port or cable.
• PWM Conflict: Is another part of your code accidentally using the same PWM channel (channel 0 for ledc on GPIO5) for a different purpose? PWM channels are shared across pins.
• Hardware Fault: The onboard resistor or LED may be faulty. This is rare but possible on cheap clones.

Conclusion: More Than Just a Blinking Light

The ESP32-C3 Super Mini built-in LED pin is a masterclass in efficient design. It’s a versatile debugging interface, a low-power state indicator, a learning tool for beginners, and a creative outlet for advanced makers. By understanding that this small light is hardwired to GPIO5 in an active-low configuration, you unlock a fundamental layer of interaction with your device.

From the essential "blink" sketch that confirms your development environment to complex state machines that communicate system health without a serial cable, this single component embodies the philosophy of embedded systems: achieving maximum functionality with minimal resources. As you embark on your next ESP32-C3 project—be it a battery-powered sensor, a wearable device, or a compact wireless actuator—remember to look at that tiny LED not as an afterthought, but as your most direct line of communication with your creation. Use it wisely, conserve its power when needed, and let it guide you through the debugging trenches. Your future self, staring at a non-responsive board in the field, will thank you for having built such a clear visual feedback system into your firmware from the very beginning. Now go forth and make it blink—intelligently.
