Power Up Your Sound: The Ultimate Guide To Pedal Board Power Supplies
Have you ever wondered why your guitar pedals sometimes produce that annoying hum or why certain effects just don't sound as crisp as they should? The culprit might be hiding in plain sight – your power supply. In the world of guitar effects, a pedal board power supply is often the unsung hero that can make or break your tone.
Picture this: You're on stage, ready to deliver an electrifying performance. You step on your first pedal, and instead of that pristine distortion you've been practicing, you're greeted with a buzzing noise that sounds like a swarm of angry bees. Frustrating, right? This scenario is all too common for guitarists who overlook the importance of a quality pedal board power supply.
A pedal board power supply is more than just a convenient way to power your effects pedals. It's the foundation of your entire signal chain, ensuring that each pedal receives clean, consistent power. This not only eliminates unwanted noise but also allows your effects to perform at their best, giving you the tone you've been chasing.
Understanding Pedal Board Power Supplies
What is a Pedal Board Power Supply?
A pedal board power supply is a specialized device designed to provide electrical power to multiple guitar effects pedals simultaneously. Unlike individual 9V batteries or wall warts, these power supplies offer a centralized, organized solution for powering your entire pedalboard.
Most pedalboard power supplies come with multiple isolated outputs, allowing you to power several pedals from a single unit. This isolation is crucial as it prevents ground loops and noise contamination between pedals, which can significantly degrade your tone.
The Importance of Clean Power
Clean power is the backbone of a great guitar tone. When your pedals receive inconsistent or noisy power, it can manifest as unwanted hum, buzz, or even complete signal loss. A high-quality pedal board power supply ensures that each pedal gets the exact voltage and current it needs, free from interference.
Consider this: Your overdrive pedal might sound fantastic on its own, but when daisy-chained with other pedals on a cheap power supply, it could introduce a high-pitched whine that ruins your tone. This is why investing in a good pedal board power supply is crucial for any serious guitarist.
Types of Pedal Board Power Supplies
Isolated vs. Non-Isolated Power Supplies
When shopping for a pedal board power supply, you'll encounter two main categories: isolated and non-isolated units.
Isolated power supplies feature separate, electrically isolated outputs for each pedal. This means that each output has its own transformer and regulation circuitry, completely isolating it from the others. This isolation prevents ground loops and ensures that noise from one pedal doesn't affect the others.
Non-isolated power supplies, on the other hand, use a single transformer to power all outputs. While these are often cheaper, they can introduce noise and hum, especially when powering a large number of pedals or pedals with different power requirements.
Voltage Options: 9V, 12V, and 18V
Most guitar pedals operate on 9V power, but some high-gain or digital pedals require 12V or even 18V to function optimally. A versatile pedal board power supply should offer multiple voltage options to accommodate various pedal types.
For example, some Strymon pedals require 9V but need 300mA or more of current, while others like the Strymon El Capistan can benefit from 18V operation for increased headroom. Having a power supply that can switch between voltages gives you the flexibility to power a wide range of pedals.
AC vs. DC Outputs
While most pedals use DC power, some vintage effects and certain digital units require AC power. High-end pedal board power supplies often include a mix of AC and DC outputs to cater to these specific needs.
For instance, the legendary DOD FX40B EQ pedal and some Line 6 modelers require AC power. Having at least one AC output on your power supply ensures you can accommodate these unique pedals without resorting to individual power adapters.
Choosing the Right Pedal Board Power Supply
Assessing Your Power Needs
Before purchasing a pedal board power supply, it's essential to assess your current and future power requirements. Start by making a list of all the pedals in your setup, noting their voltage and current (mA) requirements.
Add up the total current draw of all your pedals to ensure the power supply you choose can handle the load. It's also wise to leave some headroom for future pedal acquisitions. A good rule of thumb is to choose a power supply that can handle at least 20% more than your current needs.
Considering Build Quality and Features
When it comes to pedal board power supplies, you often get what you pay for. Look for units with robust construction, high-quality components, and features like short-circuit protection and over-voltage protection.
Some advanced features to consider include:
- Isolated outputs with individual transformers
- Adjustable voltage options
- Pedal voltage sag simulation for vintage tones
- Link output for connecting multiple power supplies
- USB ports for charging mobile devices
Popular Pedal Board Power Supply Brands
Several manufacturers have established themselves as leaders in the pedal board power supply market. Some notable brands include:
- Voodoo Lab: Known for their Pedal Power series
- Ciocks: Offers the DC10 and DC10X models
- Truetone: Popular for their 1 SPOT Pro series

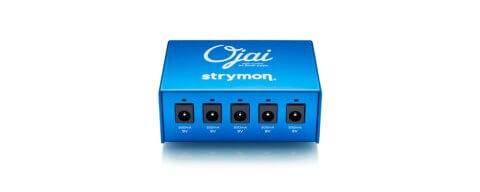

- Strymon: High-end options like the Zuma and Ojai
- Mooer: Budget-friendly choices like the Power Supply 9V
Setting Up Your Pedal Board Power Supply
Cable Management and Organization
Once you've chosen your pedal board power supply, proper cable management is key to a clean, professional setup. Many power supplies come with a variety of cable lengths and connector types to accommodate different pedal configurations.
Use hook-and-loop ties or cable organizers to keep power cables neat and tidy. This not only looks better but also prevents cables from interfering with your playing or getting damaged during transport.
Daisy-Chaining vs. Individual Connections
While daisy-chaining multiple pedals off a single output might seem convenient, it's generally not recommended for serious setups. Daisy-chaining can introduce noise and ground loops, especially when mixing digital and analog pedals.
Instead, use individual connections from isolated outputs whenever possible. This ensures each pedal receives clean, isolated power and helps maintain the integrity of your signal chain.
Powering High-Current Pedals
Some modern pedals, particularly digital multi-effects units and high-gain overdrives, require substantial current to operate. Make sure your pedal board power supply has outputs capable of delivering the necessary current for these power-hungry pedals.
For example, the Strymon BigSky reverb pedal requires 9V at 500mA, which is more than many standard pedal power outputs can provide. Always check your pedal's power requirements against your power supply's specifications.
Troubleshooting Common Power Issues
Identifying and Eliminating Ground Loops
Ground loops are a common source of unwanted noise in guitar setups. They occur when there are multiple paths to ground, creating a loop that can pick up electromagnetic interference.
To identify ground loops, listen for a low hum that changes when you touch the strings or metal parts of your guitar. Using an isolated pedal board power supply is the best way to prevent ground loops, as each output is electrically isolated from the others.
Dealing with Switching Power Supply Noise
Some cheaper pedal board power supplies use switching power supply technology, which can introduce high-frequency noise into your signal. This noise often sounds like a high-pitched whine that gets louder with higher gain settings.
If you suspect your power supply is introducing noise, try moving it away from your pedals or using a noise gate in your signal chain. For the best results, invest in a linear power supply, which is inherently quieter but often more expensive and heavier.
Voltage Sag and Its Effects on Tone
Voltage sag occurs when a power supply can't maintain its rated voltage under load, causing the voltage to "sag" or drop. Some guitarists intentionally use dying batteries to achieve this effect for a softer, more compressed tone.
Some advanced pedal board power supplies offer a sag control feature, allowing you to dial in this effect without the unreliability of batteries. This can be particularly useful for achieving vintage-style tones with modern, reliable power.
The Future of Pedal Board Power Supplies
Digital Power Management
As technology advances, we're seeing more pedal board power supplies incorporating digital power management features. These smart power supplies can communicate with your pedals, automatically adjusting voltage and current to match each pedal's requirements.
Some even offer smartphone apps for remote control and monitoring of your power setup, allowing you to tweak settings on the fly during performances.
Integration with Pedalboard Design
Manufacturers are increasingly designing pedal board power supplies to integrate seamlessly with popular pedalboard sizes and brands. This integration results in cleaner, more organized setups with power supplies that mount directly under or within the pedalboard itself.
This trend towards integration not only improves aesthetics but also reduces cable clutter and makes for easier transportation and setup at gigs.
Conclusion
A quality pedal board power supply is an essential investment for any serious guitarist. It's the foundation upon which your entire effects setup is built, ensuring clean, consistent power to all your pedals. By understanding the different types of power supplies, assessing your needs, and choosing the right unit, you can eliminate noise, improve reliability, and focus on what really matters – making great music.
Remember, the best pedal board power supply for you depends on your specific setup and needs. Whether you're a bedroom guitarist with a few pedals or a touring musician with a complex rig, there's a power solution out there that's perfect for you. Don't let power issues hold back your tone – invest in a quality pedal board power supply and experience the difference it can make in your sound.
